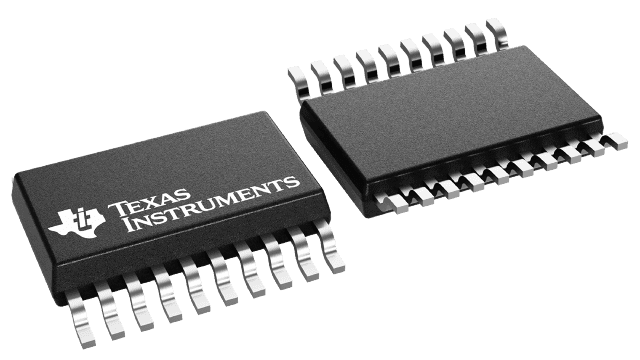

SN74AC541
  • SN74AC541
  • SN74AC541
  • SN74AC541
  • SN74AC541
  • SN74AC541

SN74AC541

ACTIVE

Eight-channel, 1.5-V to 6-V, 24-mA drive strength buffers with 3-state outputs

Texas Instruments SN74AC541 Product Info

1 April 2026 0

Parameters

Technology family

AC

Supply voltage (min) (V)

1.5

Supply voltage (max) (V)

6

Number of channels

8

IOL (max) (mA)

24

Supply current (max) (µA)

20

IOH (max) (mA)

-24

Input type

CMOS

Output type

3-State

Features

Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns)

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

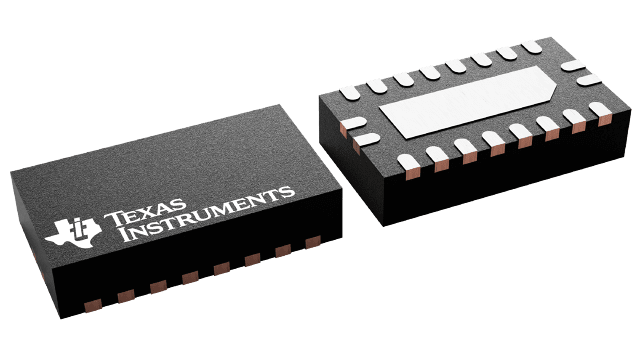

VQFN (RKS)-20-11.25 mm² 4.5 x 2.5

Features

  • Wide operating range of 1.5 V to 6 V
  • Inputs accept voltages up to 6 V
  • Continuous ±24-mA output drive at 5 V
  • Supports up to ±75-mA output drive at 5 V in short bursts
  • Drives 50-Ω transmission lines
  • Maximum t pd of 6 ns at 5 V, 50 pF load
  • Wide operating range of 1.5 V to 6 V
  • Inputs accept voltages up to 6 V
  • Continuous ±24-mA output drive at 5 V
  • Supports up to ±75-mA output drive at 5 V in short bursts
  • Drives 50-Ω transmission lines
  • Maximum t pd of 6 ns at 5 V, 50 pF load

Description

The SN74AC541 contains eight independent logic buffers. The outputs can simultaneously be put into the high-impedance state using either of the provided output enable pins ( OE1 or OE2).

The SN74AC541 contains eight independent logic buffers. The outputs can simultaneously be put into the high-impedance state using either of the provided output enable pins ( OE1 or OE2).
