- Controlled Baseline
- One Assembly/Test Site, One Fabrication Site
- Enhanced Diminishing Manufacturing
Sources (DMS) Support - Enhanced Product-Change Notification
- Qualification Pedigree
- 21:3 Data Channel Compression at up to
1.36 Gigabits per Second Throughput - Suited for Point-to-Point Subsystem
Communication With Very Low EMI - 21 Data Channels Plus Clock in
Low-Voltage TTL and 3 Data Channels Plus
Clock Out Low-Voltage Differential - Operates From a Single 3.3-V Supply and
250 mW (Typ) - 5-V Tolerant Data Inputs
- ’LVDS95 Has Rising Clock Edge Triggered Inputs
- Bus Pins Tolerate 6-kV HBM ESD

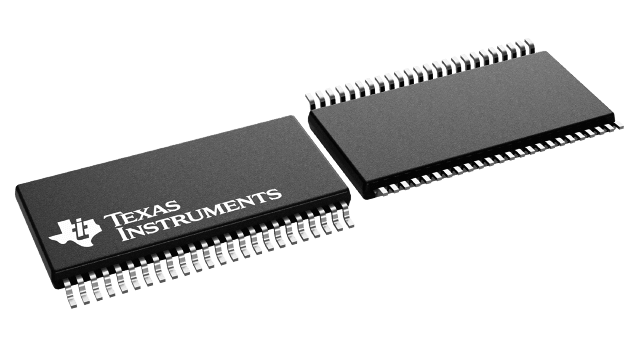

- Packaged in Thin Shrink Small-Outline
Package With 20 Mil Terminal Pitch - Consumes <1 mW When Disabled
- Wide Phase-Lock Input Frequency Range
20 MHz to 68 MHz - No External Components Required for PLL
- Inputs Meet or Exceed the Requirements of
ANSI EIA/TIA-644 Standard - Industrial Temperature Qualified
TA = –40°C to 85°C - Replacement for the National DS90CR215
Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.
- Controlled Baseline
- One Assembly/Test Site, One Fabrication Site
- Enhanced Diminishing Manufacturing
Sources (DMS) Support - Enhanced Product-Change Notification
- Qualification Pedigree
- 21:3 Data Channel Compression at up to
1.36 Gigabits per Second Throughput - Suited for Point-to-Point Subsystem
Communication With Very Low EMI - 21 Data Channels Plus Clock in
Low-Voltage TTL and 3 Data Channels Plus
Clock Out Low-Voltage Differential - Operates From a Single 3.3-V Supply and
250 mW (Typ) - 5-V Tolerant Data Inputs
- ’LVDS95 Has Rising Clock Edge Triggered Inputs
- Bus Pins Tolerate 6-kV HBM ESD
- Packaged in Thin Shrink Small-Outline
Package With 20 Mil Terminal Pitch - Consumes <1 mW When Disabled
- Wide Phase-Lock Input Frequency Range
20 MHz to 68 MHz - No External Components Required for PLL
- Inputs Meet or Exceed the Requirements of
ANSI EIA/TIA-644 Standard - Industrial Temperature Qualified
TA = –40°C to 85°C - Replacement for the National DS90CR215
Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.
