SMV512K32-SP
  • SMV512K32-SP

SMV512K32-SP

ACTIVE

16MB Radiation-Hardened SRAM

Texas Instruments SMV512K32-SP Product Info

1 April 2026 1

Parameters

Technology family

V

Rating

Space

Operating temperature range (°C)

-55 to 125

Package

CFP (HFG)-76-517.8426 mm² 25.31 x 20.46

Features

  • 20-ns Read, 13.8-ns Write Through Maximum Access Time
  • Functionally Compatible With Commercial
    512K x 32 SRAM Devices
  • Built-In EDAC (Error Detection and Correction) to Mitigate Soft Errors
  • Built-In Scrub Engine for Autonomous Correction
  • CMOS Compatible Input and Output Level, Three State Bidirectional
    Data Bus
    • 3.3 ±0.3-V I/O, 1.8 ±0.15-V CORE
  • Radiation Performance(1)
  • Uses Both Substrate Engineering and Radiation Hardened by Design (HBD)(2)
  • TID Immunity > 3e5 rad (Si)
  • SER < 5e-17 Upsets/Bit-Day (Core Using EDAC and Scrub)(3)
  • Latch up immunity > LET = 110 MeV (T = 398K)

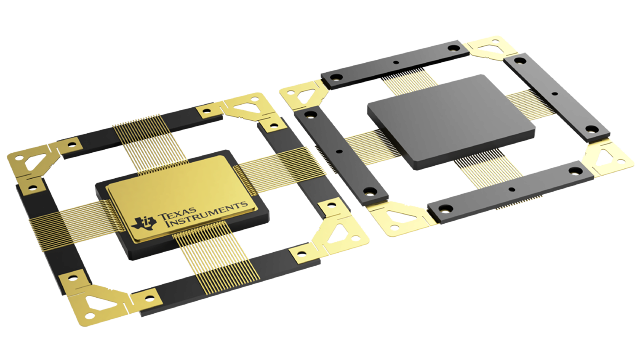

  • Available in a 76-Lead Ceramic Quad Flatpack
  • Engineering Evaluation (/EM) Samples are Available(4)
  • (1) Radiation tolerance is a typical value based upon initial device qualification. Radiation Data and Lot Acceptance Testing is available – contact factory for details.
    (2) HardSIL™ technology and memory design under a license agreement with Silicon Space Technology (SST).
    (3) SER calculated using CREME96 for geosynchronous orbit,
    solar minimum.
    (4) These units are intended for engineering evaluation only. They are processed to a non-compliant flow (e.g. no burn-in, etc.) and are tested to temperature rating of 25°C only. These units are not suitable for qualification, production, radiation testing or flight use. Parts are not warranted for performance on full MIL specified temperature range of –55°C to 125°C or operating life.

    • 20-ns Read, 13.8-ns Write Through Maximum Access Time
    • Functionally Compatible With Commercial
      512K x 32 SRAM Devices
    • Built-In EDAC (Error Detection and Correction) to Mitigate Soft Errors
    • Built-In Scrub Engine for Autonomous Correction
    • CMOS Compatible Input and Output Level, Three State Bidirectional
      Data Bus
      • 3.3 ±0.3-V I/O, 1.8 ±0.15-V CORE
    • Radiation Performance(1)
    • Uses Both Substrate Engineering and Radiation Hardened by Design (HBD)(2)
    • TID Immunity > 3e5 rad (Si)
    • SER < 5e-17 Upsets/Bit-Day (Core Using EDAC and Scrub)(3)
    • Latch up immunity > LET = 110 MeV (T = 398K)
  • Available in a 76-Lead Ceramic Quad Flatpack
  • Engineering Evaluation (/EM) Samples are Available(4)
  • (1) Radiation tolerance is a typical value based upon initial device qualification. Radiation Data and Lot Acceptance Testing is available – contact factory for details.
    (2) HardSIL™ technology and memory design under a license agreement with Silicon Space Technology (SST).
    (3) SER calculated using CREME96 for geosynchronous orbit,
    solar minimum.
    (4) These units are intended for engineering evaluation only. They are processed to a non-compliant flow (e.g. no burn-in, etc.) and are tested to temperature rating of 25°C only. These units are not suitable for qualification, production, radiation testing or flight use. Parts are not warranted for performance on full MIL specified temperature range of –55°C to 125°C or operating life.

    Description

    The SMV512K32 is a high performance asynchronous CMOS SRAM organized as 524,288 words by 32 bits. It is pin selectable between two modes: master or slave. The master device selection provides user defined autonomous EDAC scrubbing options. The slave device selection employs a scrub on demand feature that can be initiated by a master device. Three read cycles and four write cycles (described below) are available depending on the user needs.

    The SMV512K32 is a high performance asynchronous CMOS SRAM organized as 524,288 words by 32 bits. It is pin selectable between two modes: master or slave. The master device selection provides user defined autonomous EDAC scrubbing options. The slave device selection employs a scrub on demand feature that can be initiated by a master device. Three read cycles and four write cycles (described below) are available depending on the user needs.
