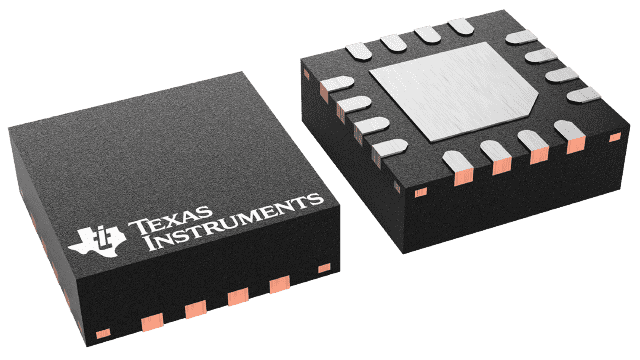

PGA855
  • PGA855
  • PGA855
  • PGA855
  • PGA855

PGA855

ACTIVE

Low-noise, wide-bandwidth, fully-differential-output programmable-gain instrumentation amplifier

Texas Instruments PGA855 Product Info

1 April 2026 0

Parameters

PGA/VGA

PGA

Number of channels

1

Vs (min) (V)

8

Vs (max) (V)

36

Input type

Differential

Output type

Differential

Input offset drift (±) (typ) (µV/°C)

0.3

Interface type

GPIO

BW at Acl (MHz)

10

Acl, min spec gain (V/V)

0.125

Gain (max) (dB)

24

Architecture

Bipolar

Features

Fully Differential, Overvoltage protection, Super-beta

Vos (offset voltage at 25°C) (typ) (mV)

0.07

Input voltage noise (typ) (µV√Hz)

0.0078

Slew rate (typ) (V/µs)

35

Iq per channel (typ) (mA)

5.3

Gain error (typ) (%)

0.02

Gain drift (max) (ppm/°C)

2

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

VQFN (RGT)-16-9 mm² 3 x 3

Features

  • Eight pin-programmable binary gains
    • G (V/V) = ⅛, ¼, ½, 1, 2, 4, 8, and 16
  • Low gain error drift: 1 ppm/°C (max) at G = 1 V/V
  • Fully differential outputs
    • Independent output power-supply pins to allow for ADC input overdrive protection
    • Output common-mode control
  • Faster signal processing:
    • Wide bandwidth: 10 MHz at all gains
    • High slew rate: 35 V/µs
    • Settling time: 500 ns to 0.01%, 950 ns to 0.0015%
    • Input stage noise: 7.8 nV/√ Hz at G = 16 V/V
    • Filter option to achieve better SNR
  • Input overvoltage protection to ±40 V beyond supplies
  • Input-stage supply range:
    • Single supply: 8 V to 36 V
    • Dual supply: ±4 V to ±18 V
  • Output-stage supply range:
    • Single supply: 4.5 V to 36 V
    • Dual supply: ±2.25 V to ±18 V
  • Specified temperature range: ­–40°C to +125°C
  • Small package: 3-mm × 3-mm VQFN
  • Eight pin-programmable binary gains
    • G (V/V) = ⅛, ¼, ½, 1, 2, 4, 8, and 16
  • Low gain error drift: 1 ppm/°C (max) at G = 1 V/V
  • Fully differential outputs
    • Independent output power-supply pins to allow for ADC input overdrive protection
    • Output common-mode control
  • Faster signal processing:
    • Wide bandwidth: 10 MHz at all gains
    • High slew rate: 35 V/µs
    • Settling time: 500 ns to 0.01%, 950 ns to 0.0015%
    • Input stage noise: 7.8 nV/√ Hz at G = 16 V/V
    • Filter option to achieve better SNR
  • Input overvoltage protection to ±40 V beyond supplies
  • Input-stage supply range:
    • Single supply: 8 V to 36 V
    • Dual supply: ±4 V to ±18 V
  • Output-stage supply range:
    • Single supply: 4.5 V to 36 V
    • Dual supply: ±2.25 V to ±18 V
  • Specified temperature range: ­–40°C to +125°C
  • Small package: 3-mm × 3-mm VQFN

Description

The PGA855 is a high-bandwidth programmable gain instrumentation amplifier with fully differential outputs. The PGA855 is equipped with eight binary gain settings, from an attenuating gain of 0.125 V/V to a maximum of 16 V/V, using three digital gain selection pins. The output common-mode voltage can be independently set using the VOCM pin.

The PGA855 architecture is optimized to drive inputs of high-resolution, precision analog-to-digital converters (ADCs) with sampling rates up to 1 MSPS without the need for an additional ADC driver. The output-stage power supplies (LVSS/LVDD) are decoupled from the input stage and can be connected to power supplies of the ADC to protect the ADC or downstream device against overdrive damage.

The super-beta input transistors offer an impressively low input bias current, which in turn provides a very low input current noise density of 0.3 pA/√ Hz, making the PGA855 a versatile choice for virtually any sensor type. The low-noise current-feedback front-end architecture offers excellent gain flatness, even at high frequencies, making the PGA855 an excellent high-impedance sensor readout device. Integrated protection circuitry on the input pins handles overvoltages up to ±40 V beyond the power-supply voltages.

The PGA855 is a high-bandwidth programmable gain instrumentation amplifier with fully differential outputs. The PGA855 is equipped with eight binary gain settings, from an attenuating gain of 0.125 V/V to a maximum of 16 V/V, using three digital gain selection pins. The output common-mode voltage can be independently set using the VOCM pin.

The PGA855 architecture is optimized to drive inputs of high-resolution, precision analog-to-digital converters (ADCs) with sampling rates up to 1 MSPS without the need for an additional ADC driver. The output-stage power supplies (LVSS/LVDD) are decoupled from the input stage and can be connected to power supplies of the ADC to protect the ADC or downstream device against overdrive damage.

The super-beta input transistors offer an impressively low input bias current, which in turn provides a very low input current noise density of 0.3 pA/√ Hz, making the PGA855 a versatile choice for virtually any sensor type. The low-noise current-feedback front-end architecture offers excellent gain flatness, even at high frequencies, making the PGA855 an excellent high-impedance sensor readout device. Integrated protection circuitry on the input pins handles overvoltages up to ±40 V beyond the power-supply voltages.
