Texas Instruments PCM1680 Product Info

Parameters

Number of DAC channels	8
Sampling rate (min) (kHz)	5
Sampling rate (max) (kHz)	192
THD+N (dB)	-94
Control interface	I2C, SPI
Resolution (Bits)	24
DAC SNR (typ) (dB)	105
Analog outputs	8
Architecture	Delta-Sigma
Operating temperature range (°C)	-25 to 70
Rating	Catalog

Package

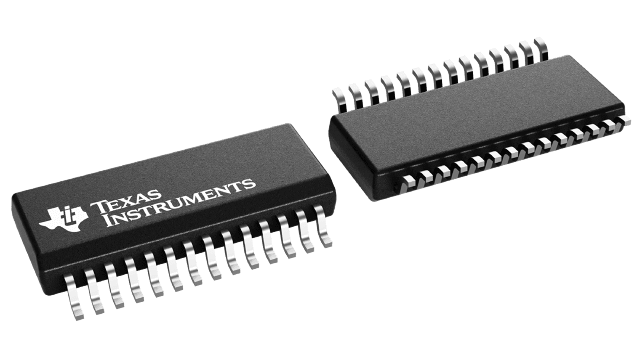

SSOP (DBQ)-28-59.4 mm² 9.9 x 6

Features

24-Bit Resolution
Analog Performance:
- Dynamic Range: 105 dB Typical
- SNR: 105 dB Typical
- THD+N: 0.002% Typical
- Full-Scale Output: 3.9 V_PP Typical
4x/8x Oversampling Interpolation Filter:
- Stop-Band Attenuation: -50 dB
- Passband Ripple: ±0.04 dB
Sampling Frequency: 5 kHz to 200 kHz
System Clock: 128 f_S, 192 f_S, 256 f_S, 384 f_S, 512 f_S, 768 f_S, or 1152 f_S with Autodetect
Zero Flags for Selectable Channel Combinations
Serial Port (SPI/I²C) for Mode Control
User-Programmable Functions:
- Flexible Audio Data Formats
  - Right-Justified, I²S, and Left-Justified
  - 16-, 18-, 20-, and 24-Bit Audio Data
- Digital Attenuation: Mode Selectable
  - 0 dB to -63 dB, 0.5-dB/step
  - 0 dB to -100 dB, 1-dB/step
- Soft Mute
- Digital De-Emphasis
- Digital Filter Roll-Off: Sharp or Slow
Single Power-Supply Operation: 5-V Analog, 5-V Digital
Package: SSOP-28 (150 mil)
Pin-Compatible with PCM1780
APPLICATIONS
- Integrated A/V Receivers
- DVD Movie and Audio Players
- HDTV Receivers
- Car Audio Systems
- DVD Add-On Cards for High-End PCs
- Digital Audio Workstations
- Other Multichannel Audio Systems

System Two, Audio Precision are trademarks of Audio Precision, Inc.
SPI is a trademark of Motorola.
I2C, I2S are trademarks of NXP Semiconductors.

24-Bit Resolution
Analog Performance:
- Dynamic Range: 105 dB Typical
- SNR: 105 dB Typical
- THD+N: 0.002% Typical
- Full-Scale Output: 3.9 V_PP Typical
4x/8x Oversampling Interpolation Filter:
- Stop-Band Attenuation: -50 dB
- Passband Ripple: ±0.04 dB
Sampling Frequency: 5 kHz to 200 kHz
System Clock: 128 f_S, 192 f_S, 256 f_S, 384 f_S, 512 f_S, 768 f_S, or 1152 f_S with Autodetect
Zero Flags for Selectable Channel Combinations
Serial Port (SPI/I²C) for Mode Control
User-Programmable Functions:
- Flexible Audio Data Formats
  - Right-Justified, I²S, and Left-Justified
  - 16-, 18-, 20-, and 24-Bit Audio Data
- Digital Attenuation: Mode Selectable
  - 0 dB to -63 dB, 0.5-dB/step
  - 0 dB to -100 dB, 1-dB/step
- Soft Mute
- Digital De-Emphasis
- Digital Filter Roll-Off: Sharp or Slow
Single Power-Supply Operation: 5-V Analog, 5-V Digital
Package: SSOP-28 (150 mil)
Pin-Compatible with PCM1780
APPLICATIONS
- Integrated A/V Receivers
- DVD Movie and Audio Players
- HDTV Receivers
- Car Audio Systems
- DVD Add-On Cards for High-End PCs
- Digital Audio Workstations
- Other Multichannel Audio Systems

System Two, Audio Precision are trademarks of Audio Precision, Inc.
SPI is a trademark of Motorola.
I2C, I2S are trademarks of NXP Semiconductors.

Description

The PCM1680 is a CMOS, monolithic integrated circuit which features eight 24-bit audio digital-to-analog converters (DACs) and support circuitry in a small SSOP-28. The DACs use TI's enhanced multilevel delta-sigma (%#x394;) architecture to achieve excellent signal-to-noise performance and a high tolerance to clock jitter.

The PCM1680 accepts industry-standard audio data formats with 16-bit to 24-bit audio data. Sampling rates up to 200 kHz are supported. The PCM1680 provides a full set of user-programmable functions through a serial control port, using an SPI or I²C interface.
