0
ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Vos (offset voltage at 25°C) (max) (mV) |
0.035 |

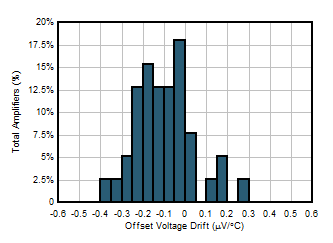

Offset drift (typ) (µV/°C) |
0.1 |
Input bias current (max) (pA) |
2000 |
GBW (typ) (MHz) |
18 |
Features |
Super Beta |
Slew rate (typ) (V/µs) |
6.4 |
Rail-to-rail |
Out |
Iq per channel (typ) (mA) |
2.2 |

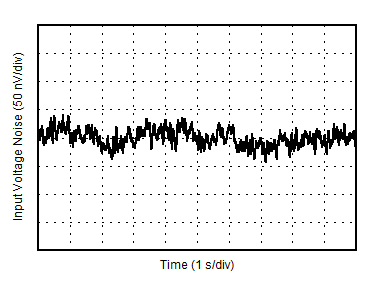

Vn at 1 kHz (typ) (nV√Hz) |
2.2 |
CMRR (typ) (dB) |
140 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (A) |
0.065 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
1.5 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.5 |
Output swing headroom (to negative supply) (typ) (V) |
0.2 |
Output swing headroom (to positive supply) (typ) (V) |
-0.2 |
THD + N at 1 kHz (typ) (%) |
0.000025 |
SOIC (D)-8-29.4 mm² 4.9 x 6

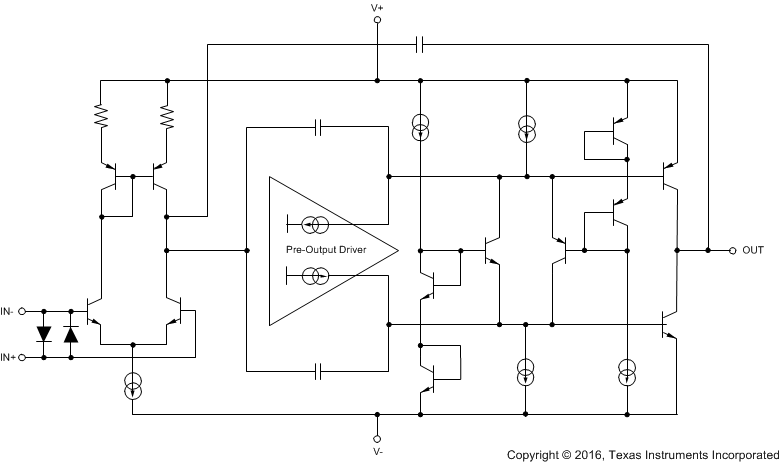

The OPA210 and OPA2210 ( OPAx210) are the next generation of OPAx209 operational amplifier (op amp). The OPAx210 precision op amps are built on TIs precision, super-beta, complementary bipolar semiconductor process, which offers ultra-low flicker noise, low offset voltage, and low offset voltage temperature drift.
The OPAx210 achieve very low voltage noise density (2.2 nV/√Hz) while consuming only 2.5 mA (maximum) per amplifier. These devices also offer rail-to-rail output swing, which helps maximize dynamic range.
In precision data-acquisition applications, the OPAx210 provide fast settling time to 16-bit accuracy, even for 10-V output swings. Excellent ac performance, combined with only 35 µV (maximum) of offset and 0.6 µV/°C (maximum) drift over temperature, makes the OPAx210 an excellent choice for high-speed, high-precision applications.
The OPAx210 are specified over a wide dual power-supply range of ±2.25 V to ±18 V, or single-supply operation from 4.5 V to 36 V, are specified from –40°C to +125°C.
