OPA858-Q1
  • OPA858-Q1
  • OPA858-Q1

OPA858-Q1

ACTIVE

Automotive 5.5-GHz gain bandwidth, decompensated transimpedance amplifier with FET input

Texas Instruments OPA858-Q1 Product Info

1 April 2026 1

Parameters

Architecture

FET / CMOS Input, Voltage FB

Number of channels

1

Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)

3.3

Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)

5.25

GBW (typ) (MHz)

5500

BW at Acl (MHz)

1200

Acl, min spec gain (V/V)

7

Slew rate (typ) (V/µs)

2000

Vn at flatband (typ) (nV√Hz)

2.5

Vn at 1 kHz (typ) (nV√Hz)

2.5

Iq per channel (typ) (mA)

20.5

Vos (offset voltage at 25°C) (max) (mV)

2.5

Rail-to-rail

No

Features

Decompensated, Shutdown

Rating

Automotive

Operating temperature range (°C)

-40 to 125

TI functional safety category

Functional Safety-Capable

CMRR (typ) (dB)

80

Input bias current (max) (pA)

5

Offset drift (typ) (µV/°C)

1.5

Iout (typ) (mA)

80

2nd harmonic (dBc)

80

3rd harmonic (dBc)

86

Frequency of harmonic distortion measurement (MHz)

10

Package

WSON (DSG)-8-4 mm² 2 x 2

Features

  • AEC-Q100 Qualified for Automotive Applications:
    • Temperature grade 1: –40°C to +125°C, TA
  • High Gain Bandwidth Product: 5.5 GHz
  • Decompensated, Gain ≥ 7 V/V (Stable)
  • Ultra-Low Bias Current MOSFET Inputs: 10 pA
  • Low Input Voltage Noise: 2.5 nV/√Hz
  • Slew rate: 2000 V/µs
  • Low Input Capacitance:
    • Common-Mode: 0.6 pF
    • Differential: 0.2 pF
  • Wide Input Common-Mode Range:
    • 1.4 V from Positive Supply
    • Includes Negative Supply
  • 2.5 VPP Output Swing in TIA Configuration
  • Supply Voltage Range: 3.3 V to 5.25 V
  • Quiescent Current: 20.5 mA
  • Package: 8-Pin WSON
  • Temperature Range: –40°C to +125°C
  • AEC-Q100 Qualified for Automotive Applications:
    • Temperature grade 1: –40°C to +125°C, TA
  • High Gain Bandwidth Product: 5.5 GHz
  • Decompensated, Gain ≥ 7 V/V (Stable)
  • Ultra-Low Bias Current MOSFET Inputs: 10 pA
  • Low Input Voltage Noise: 2.5 nV/√Hz
  • Slew rate: 2000 V/µs
  • Low Input Capacitance:
    • Common-Mode: 0.6 pF
    • Differential: 0.2 pF
  • Wide Input Common-Mode Range:
    • 1.4 V from Positive Supply
    • Includes Negative Supply
  • 2.5 VPP Output Swing in TIA Configuration
  • Supply Voltage Range: 3.3 V to 5.25 V
  • Quiescent Current: 20.5 mA
  • Package: 8-Pin WSON
  • Temperature Range: –40°C to +125°C

Description

The OPA858-Q1 is a wideband, low-noise operational amplifier with CMOS inputs for wideband transimpedance and voltage amplifier applications. When the device is configured as a transimpedance amplifier (TIA), the 5.5-GHz gain bandwidth product (GBWP) enables high closed-loop bandwidths at transimpedance gains in the range of tens to hundreds of kΩs.

The graph below shows the bandwidth and noise performance of the OPA858-Q1 as a function of the photodiode capacitance when the amplifier is configured as a TIA. The total noise is calculated along a bandwidth range extending from DC to the calculated frequency (f) on the left scale. The OPA858-Q1 package has a feedback pin (FB) that simplifies the feedback network connection between the input and the output.

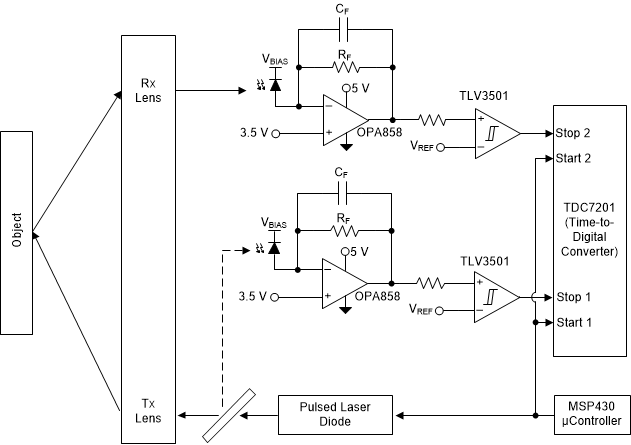

The OPA858-Q1 is optimized to operate in optical time-of-flight (ToF) systems where the OPA858-Q1 is used with time-to-digital converters, such as the TDC7201. Use the OPA858-Q1 to drive a high-speed analog-to-digital converter (ADC) in high-resolution LIDAR systems with a differential output amplifier, such as the THS4541-Q1.

The OPA858-Q1 is a wideband, low-noise operational amplifier with CMOS inputs for wideband transimpedance and voltage amplifier applications. When the device is configured as a transimpedance amplifier (TIA), the 5.5-GHz gain bandwidth product (GBWP) enables high closed-loop bandwidths at transimpedance gains in the range of tens to hundreds of kΩs.

The graph below shows the bandwidth and noise performance of the OPA858-Q1 as a function of the photodiode capacitance when the amplifier is configured as a TIA. The total noise is calculated along a bandwidth range extending from DC to the calculated frequency (f) on the left scale. The OPA858-Q1 package has a feedback pin (FB) that simplifies the feedback network connection between the input and the output.

The OPA858-Q1 is optimized to operate in optical time-of-flight (ToF) systems where the OPA858-Q1 is used with time-to-digital converters, such as the TDC7201. Use the OPA858-Q1 to drive a high-speed analog-to-digital converter (ADC) in high-resolution LIDAR systems with a differential output amplifier, such as the THS4541-Q1.
