Texas Instruments P82B715 Product Info

Parameters

Features	Buffer
Protocols	I2C
Frequency (max) (MHz)	0.4
VCCA (min) (V)	3
VCCA (max) (V)	12
VCCB (min) (V)	3
VCCB (max) (V)	12
Supply restrictions	VCC Single Supply
Rating	Catalog
Operating temperature range (°C)	-40 to 85

Package

PDIP (P)-8-92.5083 mm² 9.81 x 9.43

Features

Operating Power-Supply Voltage Range of 3 V to 12 V
Supports Bidirectional Data Transfer of I²C Bus Signals
Allows Bus Capacitance of 400 pF on Main I²C Bus (Sx/Sy Side) and 3000 pF on Transmission Side (Lx/Ly Side)
Dual Bidirectional Unity-Voltage-Gain Buffer With No External Directional Control Required
Drives 10× Lower-Impedance Bus Wiring for Improved Noise Immunity
Multi-Drop Distribution of I²C Signals Using Low-Cost Twisted-Pair Cables
I²C Bus Operation Over 50 Meters of Twisted-Pair Wire
Latch-up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2500-V Human-Body Model (A114-A)
- 400-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Operating Power-Supply Voltage Range of 3 V to 12 V
Supports Bidirectional Data Transfer of I²C Bus Signals
Allows Bus Capacitance of 400 pF on Main I²C Bus (Sx/Sy Side) and 3000 pF on Transmission Side (Lx/Ly Side)
Dual Bidirectional Unity-Voltage-Gain Buffer With No External Directional Control Required
Drives 10× Lower-Impedance Bus Wiring for Improved Noise Immunity
Multi-Drop Distribution of I²C Signals Using Low-Cost Twisted-Pair Cables
I²C Bus Operation Over 50 Meters of Twisted-Pair Wire
Latch-up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2500-V Human-Body Model (A114-A)
- 400-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

Description

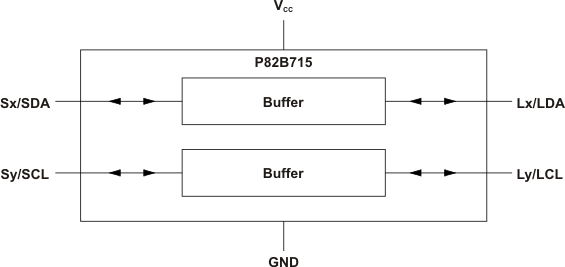

The P82B715 is a device for buffering highly-capacitive I²C bus systems, and it supports bidirectional data transfer through the I²C bus. The P82B715 buffers both the serial data (SDA) and serial clock (SCL) signals on the I²C bus and allows for extension of the I²C bus, while retaining all the operating modes and features of the I²C system.

For all available packages, see the orderable addendum at the end of the data sheet.

The P82B715 is a device for buffering highly-capacitive I²C bus systems, and it supports bidirectional data transfer through the I²C bus. The P82B715 buffers both the serial data (SDA) and serial clock (SCL) signals on the I²C bus and allows for extension of the I²C bus, while retaining all the operating modes and features of the I²C system.

For all available packages, see the orderable addendum at the end of the data sheet.
