ACTIVE
Device type |
Current sensing |
Output type |
Differential |
Peak-to-peak input voltage range (V) |
0.25 |
Isolation rating |
Reinforced |
Withstand isolation voltage (VISO) (Vrms) |
4250 |
Working isolation voltage (VIOWM) (Vrms) |
1200 |
Transient isolation voltage (VIOTM) (VPK) |
6000 |
CMTI (min) (kV/µs) |
85 |
Creepage (min) (mm) |
8 |
Clearance (min) (mm) |
8 |
Input offset (±) (max) (V) |
0.00015 |
Input offset drift (±) (typ) (µV/°C) |
0.15 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
SO-MOD (DWE)-16-106.09 mm² 10.3 x 10.3

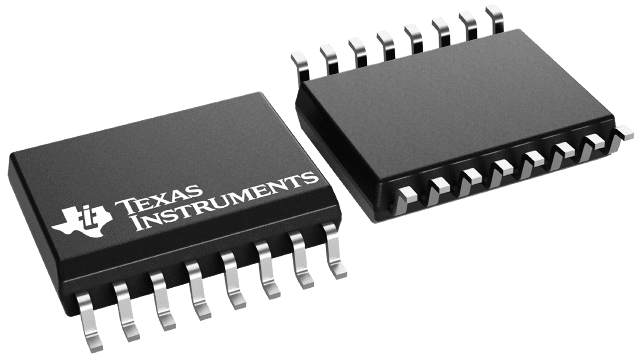

The AMC3301-Q1 is a precision, isolated amplifier, optimized for shunt-based current measurements. The fully integrated, isolated DC/DC converter allows single-supply operation from the low-side of the device which makes the device a unique solution for space-constrained applications. The reinforced capacitive isolation barrier is certified according to VDE V 0884-11 and UL1577 and supports a working voltage of up to 1.2 kVRMS.
The isolation barrier separates parts of the system that operate on different common-mode voltage levels and protects the low-voltage side from hazardous voltages and damage.

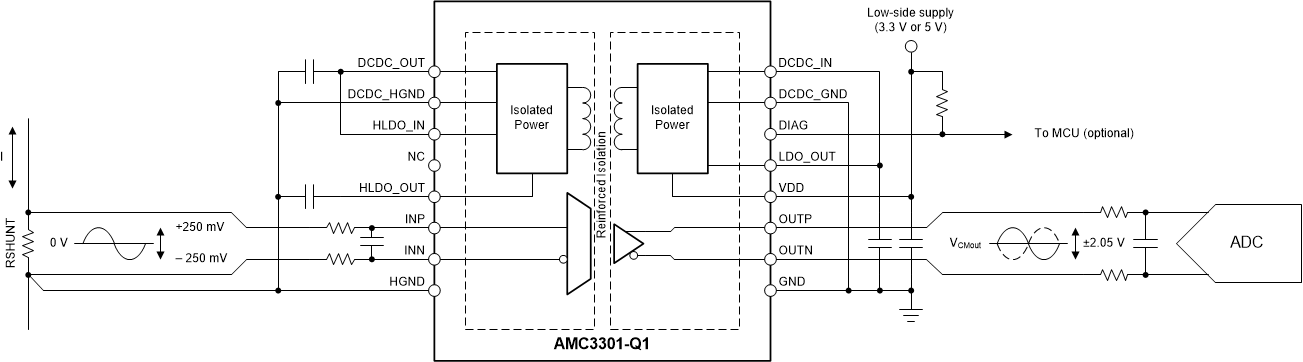

The input of the AMC3301-Q1 is optimized for direct connection to a low-impedance shunt resistor or other, low-impedance voltage source with low signal levels. The excellent DC accuracy and low temperature drift supports accurate current measurements in the temperature range from –40°C to +125°C.
The integrated DC/DC converter fault-detection and diagnostic output pin of the AMC3301-Q1 simplify system-level design and diagnostics.
