0
ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
40 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
4.5 |
Slew rate (typ) (V/µs) |
21 |
Vos (offset voltage at 25°C) (max) (mV) |
0.75 |
Iq per channel (typ) (mA) |
0.56 |
Vn at 1 kHz (typ) (nV√Hz) |
10.8 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
0.3 |
Features |
EMI Hardened, High Cload Drive, MUX Friendly, Shutdown, Small Size |
CMRR (typ) (dB) |
130 |
Iout (typ) (A) |
0.075 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.025 |
Output swing headroom (to positive supply) (typ) (V) |
-0.025 |

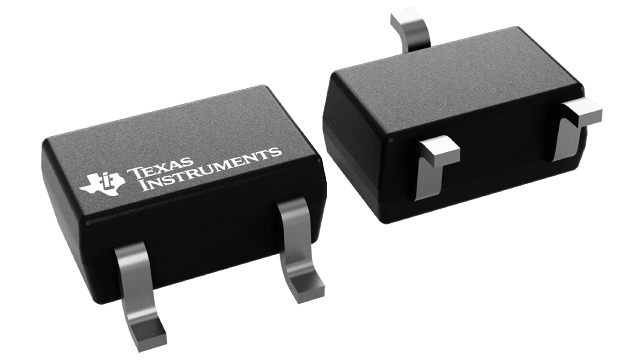

SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8
The OPAx991 family (OPA991, OPA2991, and OPA4991) is a family of high voltage (40 V) general purpose operational amplifiers. These devices offer exceptional DC precision and AC performance, including rail-to-rail input/output, low offset (±125 µV, typical), low offset drift (±0.3 µV/°C, typical), low noise (10.5 nV/√Hz and 1.8 µVPP), and 4.5-MHz bandwidth.

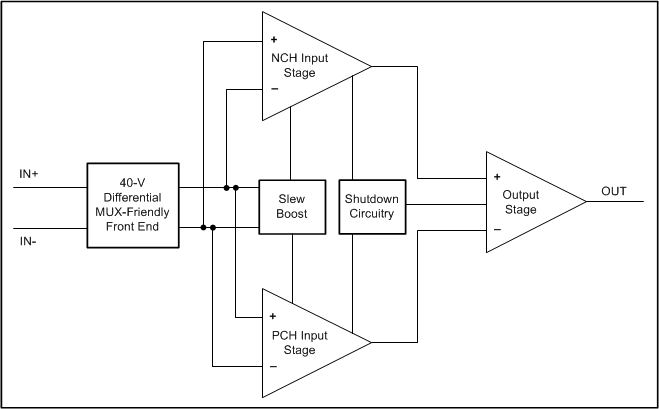

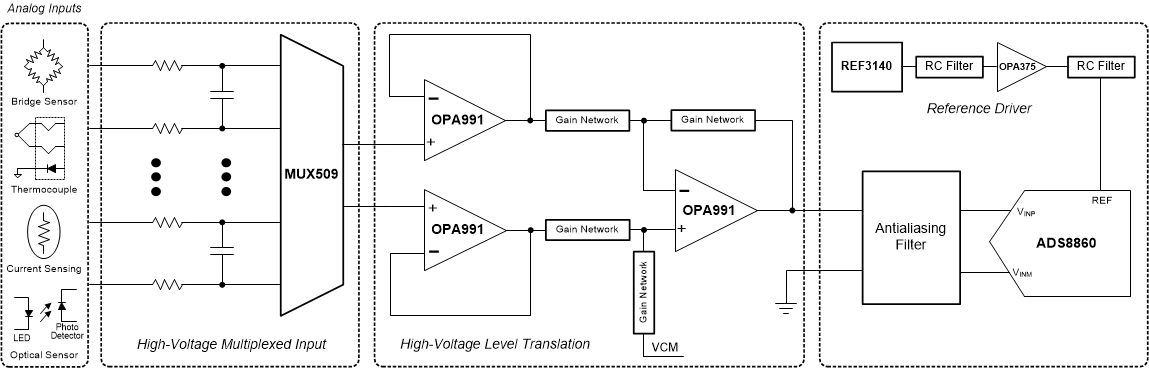

Unique features such as differential and common-mode input-voltage range to the supply rail, high output current (±75 mA), high slew rate (21 V/µs), high capacitive load drive (1 nF), and shutdown functionality make the OPAx991 a robust, high-performance operational amplifier for high-voltage industrial applications.
The OPAx991 family of op amps is available in micro-size packages (such as X2QFN and WSON), as well as standard packages (such as SOT-23, SOIC, and TSSOP), and is specified from –40°C to 125°C.
