ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Vos (offset voltage at 25°C) (max) (mV) |
0.005 |
Offset drift (typ) (µV/°C) |
0.02 |
Input bias current (max) (pA) |
200 |
GBW (typ) (MHz) |
2 |
Features |
EMI Hardened, Zero Drift |
Slew rate (typ) (V/µs) |
1.6 |
Rail-to-rail |
In to V-, Out |
Iq per channel (typ) (mA) |
0.285 |
Vn at 1 kHz (typ) (nV√Hz) |
60 |
CMRR (typ) (dB) |
130 |
Rating |
Military |
Operating temperature range (°C) |
-55 to 125 |
Iout (typ) (A) |
0.05 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.5 |
Output swing headroom (to negative supply) (typ) (V) |
0.015 |
Output swing headroom (to positive supply) (typ) (V) |
-0.015 |

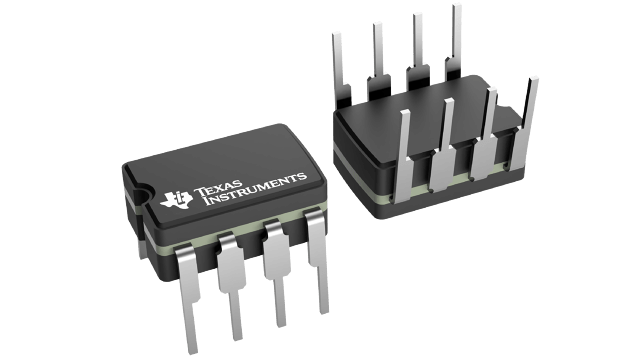

CDIP (JG)-8-64.032 mm² 9.6 x 6.67
The OPA2335 CMOS operational amplifier uses auto-zeroing techniques to simultaneously provide very low offset voltage (5 µV max), and near-zero drift over time and temperature. This high-precision, low quiescent current amplifier offers high input impedance and rail-to-rail output swing. Single or dual supplies as low as 2.7 V (±1.35 V) and up to 5.5 V (±2.75 V) may be used. This op amp is optimized for low-voltage, single-supply operation.
The OPA2335 is available in a CDIP-8 package and is specified for operation from -55°C to 125°C.
