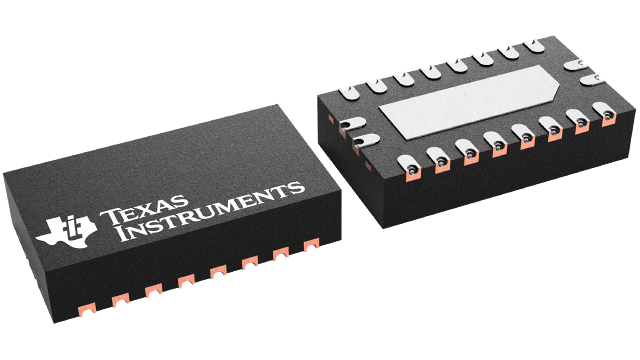

Texas Instruments LSF0108-Q1 Product Info

Parameters

Bits (#)	8
Data rate (max) (Mbps)	200
Topology	Open drain, Push-Pull
Direction control (typ)	Auto-direction
Vin (min) (V)	0.65
Vin (max) (V)	4.9
Vout (min) (V)	1.25
Vout (max) (V)	5.5
Applications	GPIO, I2C, JTAG, MDIO, SDIO, SMBus, SPI, UART
Features	Output enable, Wettable flanks package
Prop delay (ns)	2.2
Technology family	LSF
Supply current (max) (mA)	0.0015
Rating	Automotive
Operating temperature range (°C)	-40 to 125

TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

AEC-Q100 qualified with the following results:
- Device HBM ESD classification level 2000-V
- Device CDM ESD classification level 1000-V
Available in wettable flank VQFN (RKS) package
Provides bidirectional voltage translation with no direction pin
Supports up to 100 MHz up translation and greater than 100 MHz down translation at ≤ 30-pF capacitive load and up to 40 MHz up or down translation at 50-pF capacitive load
Supports hot insertion
Allow bidirectional voltage level translation between
- 0.65 V ↔ 1.8 V, 2.5 V, 3.3 V, 5 V (RKS package only)
- 0.95 V ↔ 1.8 V, 2.5 V, 3.3 V, 5 V
- 1.2 V ↔ 1.8 V, 2.5 V, 3.3 V, 5 V
- 1.8 V ↔ 2.5 V, 3.3 V, 5 V
- 2.5 V ↔ 3.3 V, 5 V
- 3.3 V ↔ 5 V
Low standby current
5-V tolerance I/O port to support TTL
Low r on provides less signal distortion
High-impedance I/O pins for EN = low
Flow-through pin-out for easy PCB trace routing
Latch-up performance exceeds 100 mA per JESD 17
–40°C to +125°C operating temperature range

AEC-Q100 qualified with the following results:
- Device HBM ESD classification level 2000-V
- Device CDM ESD classification level 1000-V
Available in wettable flank VQFN (RKS) package
Provides bidirectional voltage translation with no direction pin
Supports up to 100 MHz up translation and greater than 100 MHz down translation at ≤ 30-pF capacitive load and up to 40 MHz up or down translation at 50-pF capacitive load
Supports hot insertion
Allow bidirectional voltage level translation between
- 0.65 V ↔ 1.8 V, 2.5 V, 3.3 V, 5 V (RKS package only)
- 0.95 V ↔ 1.8 V, 2.5 V, 3.3 V, 5 V
- 1.2 V ↔ 1.8 V, 2.5 V, 3.3 V, 5 V
- 1.8 V ↔ 2.5 V, 3.3 V, 5 V
- 2.5 V ↔ 3.3 V, 5 V
- 3.3 V ↔ 5 V
Low standby current
5-V tolerance I/O port to support TTL
Low r on provides less signal distortion
High-impedance I/O pins for EN = low
Flow-through pin-out for easy PCB trace routing
Latch-up performance exceeds 100 mA per JESD 17
–40°C to +125°C operating temperature range

Supports up to 100 MHz up translation and greater than 100 MHz down translation at ≦ 30 pF capacitive load and up to 40 MHz up and down translation at 50 pF capacitive load:
- Allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO)
Bidirectional voltage translation without DIR pin:
- Minimizes system effort to develop voltage translation for bidirectional interface (PMBus, I 2C, or SMbus)
5 V tolerance on IO port and 125°C support:
- With 5 V tolerance and 125°C support, the LSF family is flexible and compliant with TTL levels in industrial and telecom applications
Channel specific translation:
- The LSF family is able to set up different voltage translation levels on each channel

Supports up to 100 MHz up translation and greater than 100 MHz down translation at ≦ 30 pF capacitive load and up to 40 MHz up and down translation at 50 pF capacitive load:
- Allows the LSF family to support more consumer or telecom interfaces (MDIO or SDIO)
Bidirectional voltage translation without DIR pin:
- Minimizes system effort to develop voltage translation for bidirectional interface (PMBus, I 2C, or SMbus)
5 V tolerance on IO port and 125°C support:
- With 5 V tolerance and 125°C support, the LSF family is flexible and compliant with TTL levels in industrial and telecom applications
Channel specific translation:
- The LSF family is able to set up different voltage translation levels on each channel
