TPSM828301
  • TPSM828301
  • TPSM828301

TPSM828301

ACTIVE

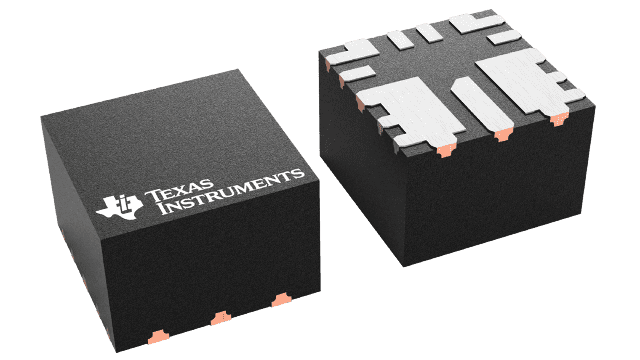

2.25-V to 5.5-V, 1-A high-efficiency step-down power module with integrated inductor

Texas Instruments TPSM828301 Product Info

1 April 2026 4

Parameters

Rating

Catalog

Topology

Buck, Step-Down Converter, Synchronous Buck

Iout (max) (A)

1

Vin (max) (V)

5.5

Vin (min) (V)

2.25

Vout (max) (V)

4.5

Vout (min) (V)

0.5

Features

1.2-V compatible control inputs, EMI Tested, Enable, Light Load Efficiency, Output discharge, Overcurrent protection, Power good

EMI features

Integrated capacitors, Low parasitic Hotrod packaging

Operating temperature range (°C)

-40 to 125

Switch current limit (typ) (A)

2.1

Type

Converter (Integrated Switch), DC/DC converter, Module

Duty cycle (max) (%)

100

Control mode

COT, Constant on-time (COT), DCS-Control

Switching frequency (min) (kHz)

2200

Switching frequency (max) (kHz)

2000

Package

QFN-FCMOD (RDS)-9-9 mm² 3 x 3

Features

  • Optimized EMI performance
    • Facilitates CISPR 11/32 compliance
    • MagPack technology shields inductor and IC
    • Integrated on-chip noise-filtering capacitors
  • 0.5V to 4.5V adjustable output voltage
  • 1% FB voltage accuracy (–40°C to 125°C TJ)
  • 55mΩ dropout resistance
  • 2.25V to 5.5V input voltage range
  • 2.0MHz switching frequency
  • 7µA operating quiescent current
  • DCS-Control topology
  • Excellent transient response
  • MODE pin selectable FPWM or PSM
  • Supports 1.2V GPIO
  • 100% duty cycle for lowest dropout
  • Active output discharge
  • Power-good output
  • Thermal shutdown protection
  • Hiccup or latch-off OCP/OVP
  • Package options with no bondwires
    • Standard QFN, 1.95mm height
    • Shielded MagPack package, 1.95mm height
  • Create a custom design using the TPSM828303 with the WEBENCH® Power Designer
  • Optimized EMI performance
    • Facilitates CISPR 11/32 compliance
    • MagPack technology shields inductor and IC
    • Integrated on-chip noise-filtering capacitors
  • 0.5V to 4.5V adjustable output voltage
  • 1% FB voltage accuracy (–40°C to 125°C TJ)
  • 55mΩ dropout resistance
  • 2.25V to 5.5V input voltage range
  • 2.0MHz switching frequency
  • 7µA operating quiescent current
  • DCS-Control topology
  • Excellent transient response
  • MODE pin selectable FPWM or PSM
  • Supports 1.2V GPIO
  • 100% duty cycle for lowest dropout
  • Active output discharge
  • Power-good output
  • Thermal shutdown protection
  • Hiccup or latch-off OCP/OVP
  • Package options with no bondwires
    • Standard QFN, 1.95mm height
    • Shielded MagPack package, 1.95mm height
  • Create a custom design using the TPSM828303 with the WEBENCH® Power Designer

Description

The TPSM82830x are a family of 1A, 2A, and 3A, pin-to-pin compatible, easy-to-use, synchronous, step-down, DC/DC modules with integrated inductor and EMI reduction technologies. The devices use DCS-Control topology for fast transient response with small output capacitance. The output voltage can be set down to 0.5V with high feedback voltage accuracy of 1% over the full operating junction temperature range. A mode pin selects between power saving and forced-PWM mode. The power save mode is for longer battery life and the forced PWM mode reduces ripple with continuous conduction in the inductor at a quasi fixed switching frequency. An internal soft-start circuit reduces inrush current and a power-good signal indicates correct output voltage. HICCUP short-circuit protection combined with thermal shutdown protect device and application. The family is available in a 3.0mm × 3.0mm QFN package and in the 2.5mm × 2.6mm MagPack package.
