ACTIVE
Rating |
Catalog |
Topology |
Buck, Synchronous Buck |
Iout (max) (A) |
8 |
Vin (max) (V) |
18 |
Vin (min) (V) |
4 |
Vout (max) (V) |
1.8 |
Vout (min) (V) |
0.5 |
Features |
Adjustable current limit, Adjustable soft start, Enable, Forced PWM, Frequency synchronization, Overcurrent protection, Power good, Pre-bias startup, Synchronous rectification, UVLO adjustable |
EMI features |
Low parasitic Hotrod packaging |
Operating temperature range (°C) |
-55 to 125 |
Type |
Module |
Duty cycle (max) (%) |
94 |
Control mode |
ACM/AECM |
Switching frequency (min) (kHz) |
500 |
Switching frequency (max) (kHz) |
2200 |
uSIP (SIT)-15-12.25 mm² 3.5 x 3.5

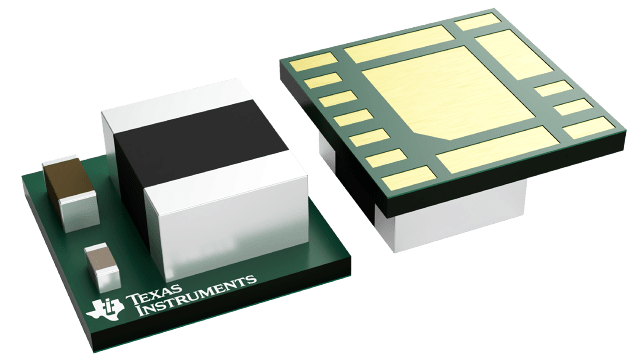

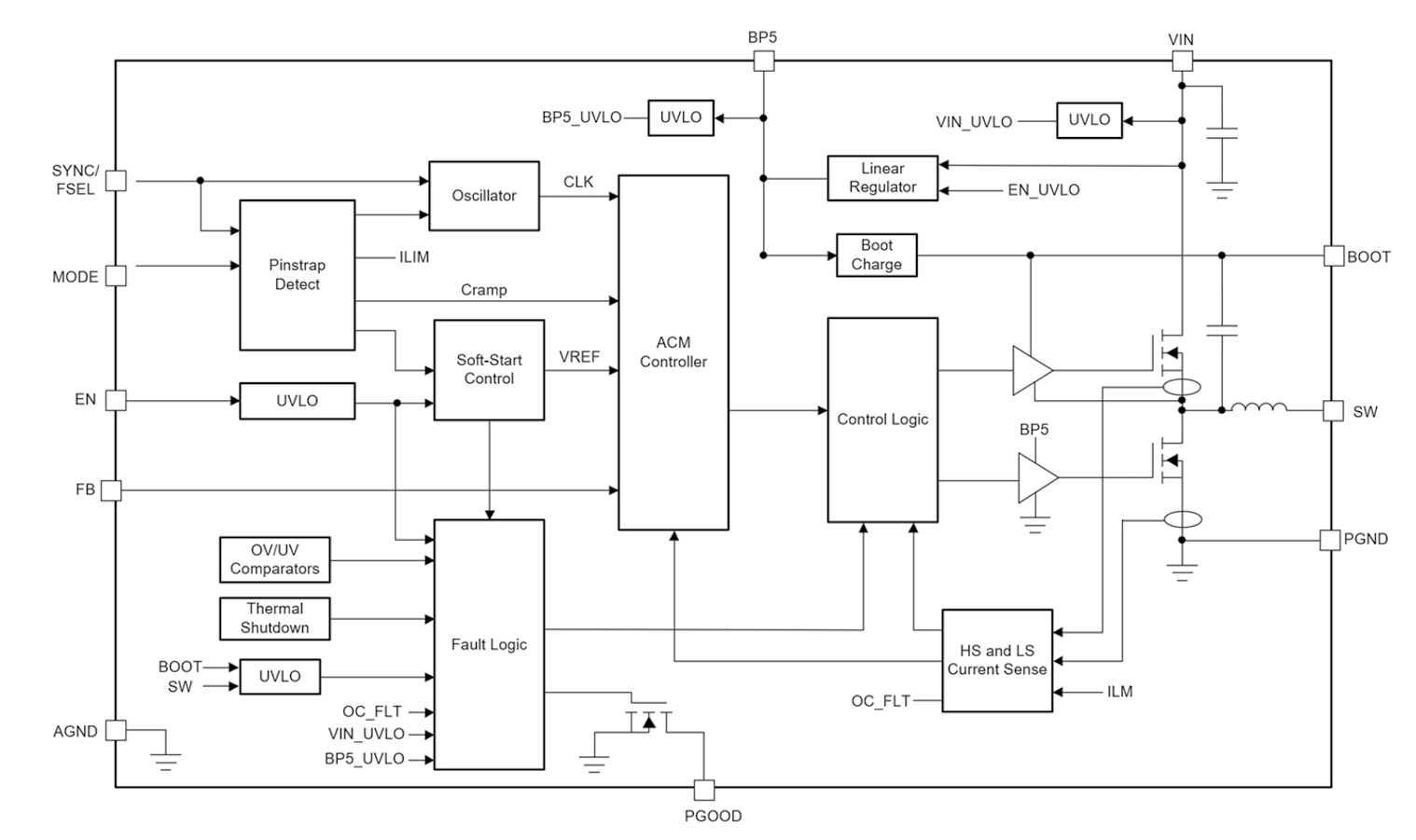

TPSM843820E is a highly efficient, small, and flexible synchronous step-down DC-DC converter in a MicroSiP power module package that is easy to use. The module operates up to 18V input with fixed-frequencies that are resistor adjustable by system designer. The embedded IC is internally compensated which reduces external components and design size. The integrated high-frequency capacitor reduces the transient peak at switching node.
The TPSM843820E module employs an internally compensated, fixed-frequency advanced current mode control. The device is capable of providing high efficiency while running at a switching frequency up to 2.2MHz. The fixed frequency controller can operate from 500kHz to 2.2MHz and can be synchronized to an external clock using the SYNC pin. Additional features include a high accuracy voltage reference, selectable soft-start times, monotonic start-up into prebiased outputs, selectable current limits, adjustable UVLO through the EN pin, and a full suite of fault protections.
