LMK1C1108
  • LMK1C1108
  • LMK1C1108

LMK1C1108

ACTIVE

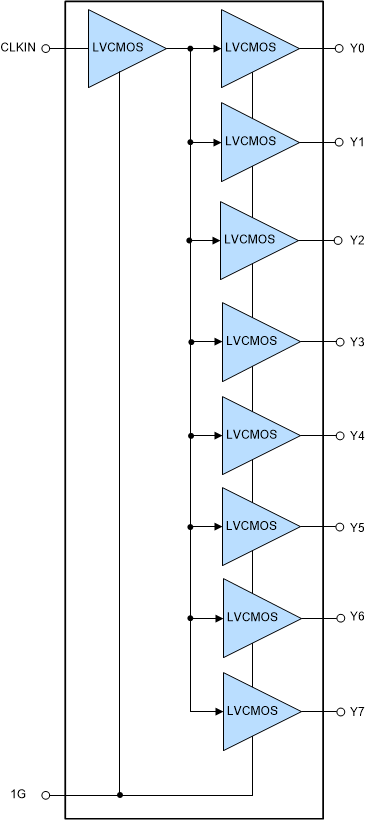

8-channel output LVCMOS 1.8-V buffer

Texas Instruments LMK1C1108 Product Info

1 April 2026 0

Parameters

Number of outputs

8

Additive RMS jitter (typ) (fs)

19.2

Core supply voltage (V)

1.8, 2.5, 3.3

Output supply voltage (V)

1.8, 2.5, 3.3

Output skew (ps)

35

Operating temperature range (°C)

-40 to 125

Rating

Catalog

Output type

LVCMOS

Input type

LVCMOS

Package

TSSOP (PW)-16-32 mm² 5 x 6.4

Features

  • High-performance 1:6 and 1:8 LVCMOS clock buffer
  • Very low output skew < 55 ps
  • Extremely low additive jitter < 25-fs nominal
    • 12-fs typical at VDD = 3.3 V
    • 15-fs typical at VDD = 2.5 V
    • 28-fs typical at VDD = 1.8 V
  • Very low propagation delay < 3 ns
  • Synchronous output enable
  • Supply voltage: 3.3 V, 2.5 V, or 1.8 V
    • 3.3-V tolerant input at all supply voltages
    • Fail-safe inputs
  • Industry high ESD rating of 9000 V HBM
  • fmax = 250 MHz for 3.3 V fmax = 200-MHz for 2.5 V and 1.8 V
  • Operating temperature range: –40°C to 125°C
  • Available in 14-pin and 16-pin TSSOP package
  • High-performance 1:6 and 1:8 LVCMOS clock buffer
  • Very low output skew < 55 ps
  • Extremely low additive jitter < 25-fs nominal
    • 12-fs typical at VDD = 3.3 V
    • 15-fs typical at VDD = 2.5 V
    • 28-fs typical at VDD = 1.8 V
  • Very low propagation delay < 3 ns
  • Synchronous output enable
  • Supply voltage: 3.3 V, 2.5 V, or 1.8 V
    • 3.3-V tolerant input at all supply voltages
    • Fail-safe inputs
  • Industry high ESD rating of 9000 V HBM
  • fmax = 250 MHz for 3.3 V fmax = 200-MHz for 2.5 V and 1.8 V
  • Operating temperature range: –40°C to 125°C
  • Available in 14-pin and 16-pin TSSOP package

Description

The LMK1C110x is a modular, high-performance, low-skew, general-purpose clock buffer family from Texas Instruments. The entire family is designed with a modular approach in mind. Five different fan-out variations, 1:2, 1:3, 1:4, 1:6 and 1:8 are available.

All of the devices within this family are pin-compatible to each other and backwards compatible to the CDCLVC110x family for easy handling.

All family members share the same high performing characteristics such as low additive jitter, low skew, and wide operating temperature range.

The LMK1C110x supports a synchronous output enable control (1G) which switches the outputs into a low state when 1G is low. These devices have a fail-safe input that prevents oscillation at the outputs in the absence of an input signal and allows for input signals before VDD is supplied.

The LMK1C110x family operates in a 1.8-V, 2.5-V and 3.3-V environment and are characterized for operation from –40°C to 125°C.

The LMK1C110x is a modular, high-performance, low-skew, general-purpose clock buffer family from Texas Instruments. The entire family is designed with a modular approach in mind. Five different fan-out variations, 1:2, 1:3, 1:4, 1:6 and 1:8 are available.

All of the devices within this family are pin-compatible to each other and backwards compatible to the CDCLVC110x family for easy handling.

All family members share the same high performing characteristics such as low additive jitter, low skew, and wide operating temperature range.

The LMK1C110x supports a synchronous output enable control (1G) which switches the outputs into a low state when 1G is low. These devices have a fail-safe input that prevents oscillation at the outputs in the absence of an input signal and allows for input signals before VDD is supplied.

The LMK1C110x family operates in a 1.8-V, 2.5-V and 3.3-V environment and are characterized for operation from –40°C to 125°C.
