BQ25175
  • BQ25175
  • BQ25175

BQ25175

ACTIVE

Standalone 1-cell 800-mA linear battery charger in a WCSP package

Texas Instruments BQ25175 Product Info

1 April 2026 1

Parameters

Rating

Catalog

Number of series cells

1

Cell chemistry

Li-Ion/Li-Polymer

Charge current (max) (A)

0.8

Features

BAT temp thermistor monitoring (JEITA profile), IC thermal regulation

Vin (min) (V)

3

Vin (max) (V)

6.5

Absolute max Vin (max) (V)

30

Control topology

Linear

Battery charge voltage (min) (V)

4.35

Battery charge voltage (max) (V)

4.35

Control interface

Standalone (RC-Settable)

Operating temperature range (°C)

-40 to 85

Package

DSBGA (YBG)-6-1.4136 mm² 0.95 x 1.488

Features

  • Input voltage up to 30-V tolerant
  • Automatic Sleep Mode for low power consumption
    • 350-nA battery leakage current
    • 80-µA input leakage current when charge disabled
  • Supports 1-cell Li-Ion, and Li-Poly

  • Fixed 4.35-V battery regulation voltage

  • External resistor programmable operation
    • ISET to set charge current from 10 mA to 800 mA
  • High accuracy
    • ±0.5% charge voltage accuracy
    • ±10% charge current accuracy
  • Charging features
    • Precharge current 20% of ISET
    • Termination current 10% of ISET
    • NTC thermistor input to monitor battery temperature
    • Cold and hot temperature charging disabled
    • Cool temperature charging at 20% of ISET
    • TS pin for charging function control
    • Open-drain output for status and fault indication
  • Integrated fault protection
    • 6.6-V IN overvoltage protection
    • 1000-mA overcurrent protection
    • 125°C thermal regulation; 150°C thermal shutdown protection
    • OUT short-circuit protection
    • ISET pin short/open protection
  • Input voltage up to 30-V tolerant
  • Automatic Sleep Mode for low power consumption
    • 350-nA battery leakage current
    • 80-µA input leakage current when charge disabled
  • Supports 1-cell Li-Ion, and Li-Poly

  • Fixed 4.35-V battery regulation voltage

  • External resistor programmable operation
    • ISET to set charge current from 10 mA to 800 mA
  • High accuracy
    • ±0.5% charge voltage accuracy
    • ±10% charge current accuracy
  • Charging features
    • Precharge current 20% of ISET
    • Termination current 10% of ISET
    • NTC thermistor input to monitor battery temperature
    • Cold and hot temperature charging disabled
    • Cool temperature charging at 20% of ISET
    • TS pin for charging function control
    • Open-drain output for status and fault indication
  • Integrated fault protection
    • 6.6-V IN overvoltage protection
    • 1000-mA overcurrent protection
    • 125°C thermal regulation; 150°C thermal shutdown protection
    • OUT short-circuit protection
    • ISET pin short/open protection

Description

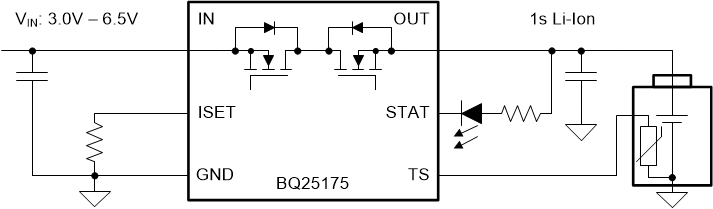

The BQ25175 is an integrated 800-mA linear charger for 1-cell Li-Ion and Li-Poly batteries. The device has a single power output that charges the battery. The system load can be placed in parallel with the battery, as long as the average system load does not prevent the battery from charging fully within the safety timer duration. When the system load is placed in parallel with the battery, the charge current is shared between the system and the battery.

The device has three phases for charging a Li-Ion/Li-Poly battery: precharge to recover a fully discharged battery, fast-charge constant current to supply the bulk of the charge, and voltage regulation to reach full capacity.

In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold, TREG, is exceeded.

The charger power stage and charge current sense functions are fully integrated. The charger function has high accuracy current and voltage regulation loops, charge status display, and automatic charge termination. The fast charge current is programmable through an external resistor. The precharge and termination current thresholds track the fast charge current setting.

The BQ25175 is an integrated 800-mA linear charger for 1-cell Li-Ion and Li-Poly batteries. The device has a single power output that charges the battery. The system load can be placed in parallel with the battery, as long as the average system load does not prevent the battery from charging fully within the safety timer duration. When the system load is placed in parallel with the battery, the charge current is shared between the system and the battery.

The device has three phases for charging a Li-Ion/Li-Poly battery: precharge to recover a fully discharged battery, fast-charge constant current to supply the bulk of the charge, and voltage regulation to reach full capacity.

In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold, TREG, is exceeded.

The charger power stage and charge current sense functions are fully integrated. The charger function has high accuracy current and voltage regulation loops, charge status display, and automatic charge termination. The fast charge current is programmable through an external resistor. The precharge and termination current thresholds track the fast charge current setting.
