0
ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
24 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
1.8 |
Rail-to-rail |
In, Out |
GBW (typ) (MHz) |
17 |
Slew rate (typ) (V/µs) |
25 |
Vos (offset voltage at 25°C) (max) (mV) |
1 |

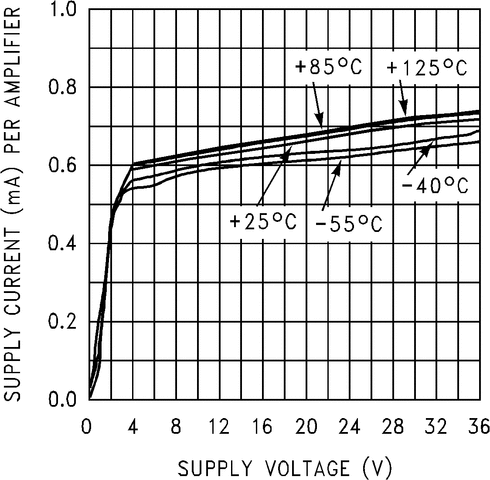

Iq per channel (typ) (mA) |
0.65 |
Vn at 1 kHz (typ) (nV√Hz) |
16 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Offset drift (typ) (µV/°C) |
3 |
Input bias current (max) (pA) |
280000 |
CMRR (typ) (dB) |
107 |
Iout (typ) (A) |
0.008 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
-0.25 |
Input common mode headroom (to positive supply) (typ) (V) |
0.25 |
Output swing headroom (to negative supply) (typ) (V) |
0.005 |
Output swing headroom (to positive supply) (typ) (V) |
-0.005 |

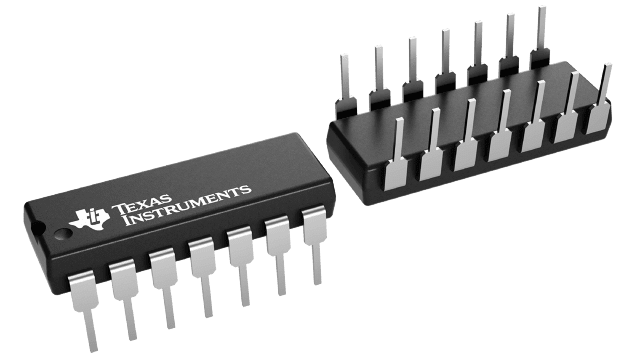

PDIP (N)-14-181.42 mm² 19.3 x 9.4
At VS = 5V. Typ Unless Noted.
