ACTIVE
Rating |
Catalog |
Topology |
Boost, Flyback, Forward, SEPIC |
Vin (max) (V) |
75 |
Vin (min) (V) |
3.1 |
Vout (max) (V) |
75 |
Vout (min) (V) |
1.26 |
Switch current limit (typ) (A) |
1 |
Features |
Enable, Frequency synchronization, Nonsynchronous rectification, UVLO adjustable |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.0031 |
Duty cycle (max) (%) |
85 |

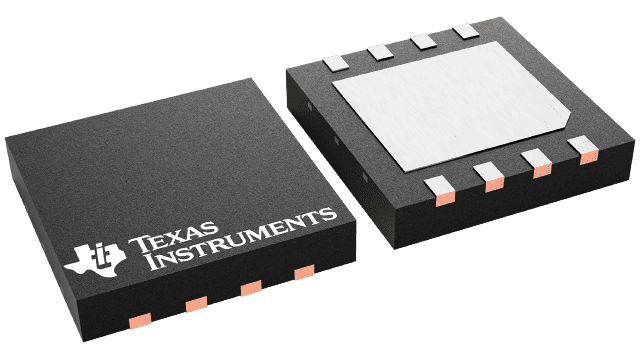

SOIC (D)-8-29.4 mm² 4.9 x 6

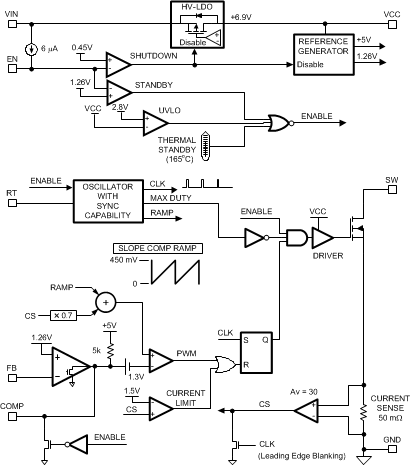

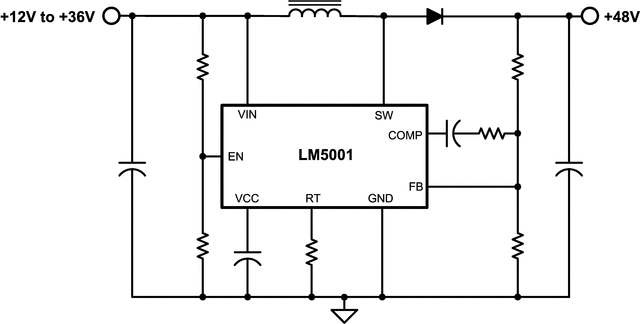

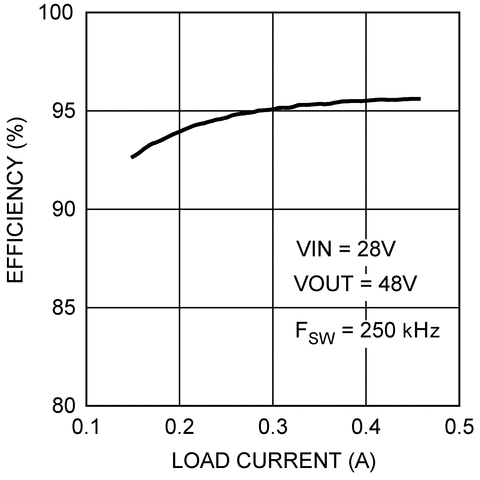

The LM5001 high-voltage switch-mode regulator features all of the functions necessary to implement efficient high-voltage Boost, Flyback, SEPIC and Forward converters, using few external components. This easy-to-use regulator integrates a 75-V N-Channel MOSFET with a 1-A peak current limit. Current mode control provides inherently simple loop compensation and line-voltage feed-forward for superior rejection of input transients. The switching frequency is set with a single resistor and is programmable up to 1.5 MHz. The oscillator can also be synchronized to an external clock. Additional protection features include: current limit, thermal shutdown, undervoltage lockout and remote shutdown capability.
