ACTIVE
Number of channels |
4 |
Output type |
Open-collector, Open-drain |
Propagation delay time (µs) |
0.6 |
Vs (max) (V) |
5.5 |
Vs (min) (V) |
1.65 |
Rating |
Catalog |
Features |
Fail-safe, POR |
Iq per channel (typ) (mA) |
0.025 |
Vos (offset voltage at 25°C) (max) (mV) |
2 |
Rail-to-rail |
In |
Operating temperature range (°C) |
-40 to 125 |
Input bias current (±) (max) (nA) |
0.005 |
VICR (max) (V) |
5.5 |
VICR (min) (V) |
0 |
TI functional safety category |
Functional Safety-Capable |

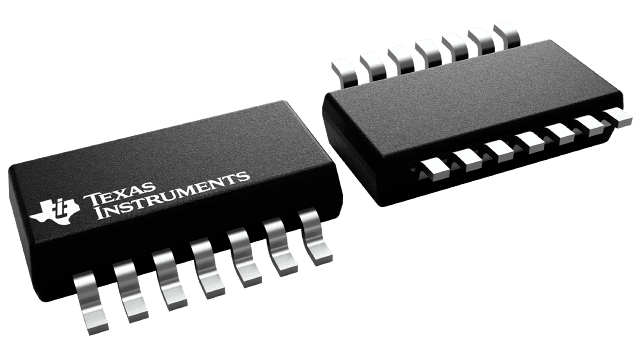

SOIC (D)-14-51.9 mm² 8.65 x 6
The LV device family consists of single, dual and quad independent voltage comparators that operate from a wide supply voltage range. The LV devices can drop-in replace the standard TL331, LM2xx, LM3xx and LM290x comparator family in low voltage (≤ 5 V) applications for improved performance and added features.

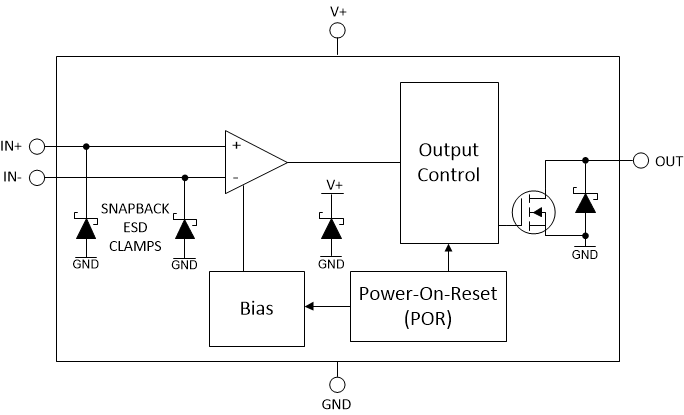

The LV devices include a Power-On-Reset (POR) feature to make sure the output is in a High-Z state until the minimum supply voltage has been reached to prevent output transients during power-up and power-down. The family also feature Rail to Rail inputs that can go up to 6 V without damage or phase inversion.
The LV devices are specified for the temperature range of -40°C to +125°C, which covers the ranges of the TL331, LM2xx, LM3xx and LM290x comparator families.
