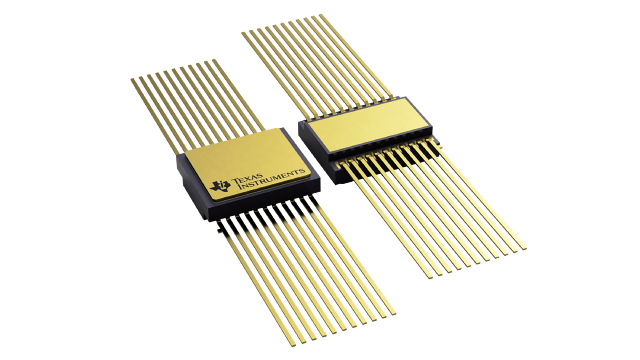

TPS7H5001-SP
  • TPS7H5001-SP
  • TPS7H5001-SP
  • TPS7H5001-SP
  • TPS7H5001-SP

TPS7H5001-SP

ACTIVE

Radiation-hardened, QMLV and QMLP 2-MHz dual-output PWM controller with synchronous rectification

Texas Instruments TPS7H5001-SP Product Info

1 April 2026 5

Parameters

Topology

Active clamp, Boost, Buck, Flyback, Forward, Full bridge, Half bridge, Push pull

Control mode

Peak current mode

Features

Dead time control, Leading edge blanking, Multi-topology

Duty cycle (max) (%)

100

Package

CFP (HFT)-22-60.221856 mm² 6.211 x 9.696

Features

  • Radiation performance:
    • Radiation hardness assured (RHA) up to TID 100krad(Si)
    • SEL, SEB, and SEGR immune to LET = 75MeV-cm2/mg
    • SET and SEFI characterized up to LET = 75MeV-cm2/mg
    • No cross-conduction events for controller outputs observed during SET characterization
  • Input voltage: 4V to 14V
  • 0.613V +0.7%/–1% voltage reference over temperature, radiation, and line and load regulation
  • Switching frequency from 100kHz to 2MHz
  • External clock synchronization capability
  • Synchronous rectification outputs
    • TPS7H5001-SP, TPS7H5002-SP, TPS7H5003-SP
  • Adjustable dead time
    • TPS7H5001-SP, TPS7H5002-SP
  • Adjustable leading edge blank time
    • TPS7H5001-SP, TPS7H5002-SP, TPS7H5004-SP
  • Configurable duty cycle limit
    • TPS7H5001-SP, TPS7H5002-SP, TPS7H5003-SP
  • Adjustable slope compensation and soft start
  • Package options include CFP and TSSOP
  • Radiation performance:
    • Radiation hardness assured (RHA) up to TID 100krad(Si)
    • SEL, SEB, and SEGR immune to LET = 75MeV-cm2/mg
    • SET and SEFI characterized up to LET = 75MeV-cm2/mg
    • No cross-conduction events for controller outputs observed during SET characterization
  • Input voltage: 4V to 14V
  • 0.613V +0.7%/–1% voltage reference over temperature, radiation, and line and load regulation
  • Switching frequency from 100kHz to 2MHz
  • External clock synchronization capability
  • Synchronous rectification outputs
    • TPS7H5001-SP, TPS7H5002-SP, TPS7H5003-SP
  • Adjustable dead time
    • TPS7H5001-SP, TPS7H5002-SP
  • Adjustable leading edge blank time
    • TPS7H5001-SP, TPS7H5002-SP, TPS7H5004-SP
  • Configurable duty cycle limit
    • TPS7H5001-SP, TPS7H5002-SP, TPS7H5003-SP
  • Adjustable slope compensation and soft start
  • Package options include CFP and TSSOP

Description

The TPS7H500x-SP family of high speed radiation-hardness-assured PWM controllers. The controllers provide a number of features that are beneficial for the design of DC-DC converter topologies intended for space applications. The controllers have a 0.613V +0.7%/–1% accurate internal reference and configurable switching frequency up to 2MHz. Each device offers programmable slope compensation and soft-start.

The TPS7H500x-SP series can be driven using an external clock through the SYNC pin or by using the internal oscillator at a frequency programmed by the user. The controller family offers the user various options for switching outputs, synchronous rectification capability, dead time (fixed or configurable), leading edge blank time (fixed or configurable), and duty cycle limit. Each device in the TPS7H500x-SP series is available in both a 22-pin CFP ceramic package and a 24-pin TSSOP plastic package.
