LM2502
  • LM2502
  • LM2502
  • LM2502

LM2502

ACTIVE

Mobile pixel link (MPL) display interface serializer and deserializer

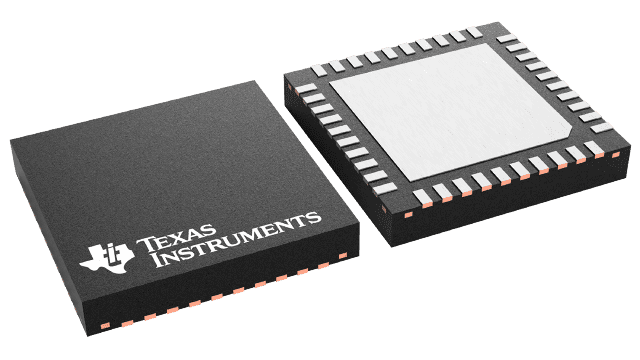

Texas Instruments LM2502 Product Info

1 April 2026 1

Parameters

Protocols

Catalog

Rating

Catalog

Operating temperature range (°C)

-30 to 85

Package

WQFN (RSB)-40-25 mm² 5 x 5

Features

  • >300 Mbps Dual Link Raw Throughput
  • MPL Physical Layer (MPL-0)
  • Pin Selectable Master / Slave Mode
  • Frequency Reference Transport
  • Complete LVCMOS / MPL Translation
  • Interface Modes:
    • 16-bit CPU, i80 or m68 Style
    • RGB565 with Glue Logic
  • −30°C to 85°C Operating Range
  • Link Power Down Mode Reduces IDDZ < 10 µA
  • Dual Display Support (CS1* & CS2*)
  • Via-less MPL Interconnect Feature
  • 3.0V Supply Voltage (VDD and VDDA)
  • Interfaces to 1.7V to 3.3V Logic (VDDIO)

All trademarks are the property of their respective owners.

  • >300 Mbps Dual Link Raw Throughput
  • MPL Physical Layer (MPL-0)
  • Pin Selectable Master / Slave Mode
  • Frequency Reference Transport
  • Complete LVCMOS / MPL Translation
  • Interface Modes:
    • 16-bit CPU, i80 or m68 Style
    • RGB565 with Glue Logic
  • −30°C to 85°C Operating Range
  • Link Power Down Mode Reduces IDDZ < 10 µA
  • Dual Display Support (CS1* & CS2*)
  • Via-less MPL Interconnect Feature
  • 3.0V Supply Voltage (VDD and VDDA)
  • Interfaces to 1.7V to 3.3V Logic (VDDIO)

All trademarks are the property of their respective owners.

Description

The LM2502 device is a dual link display interface SERDES that adapts existing CPU / video busses to a low power current-mode serial MPL link. The chipset may also be used for a RGB565 application with glue logic. The interconnect is reduced from 22 signals to only 3 active signals with the LM2502 chipset easing flex interconnect design, size and cost.

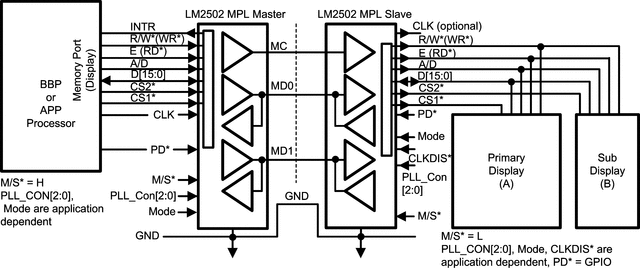

The Master Serializer (SER) resides beside an application processor or baseband processor and translates a parallel bus from LVCMOS levels to serial MPL levels for transmission over a flex cable and PCB traces to the Slave Deserializer (DES) located near the display module.

Dual display support is provided for a primary and sub display through the use of two ChipSelect signals. A Mode pin selects either a i80 or m68 style interface.

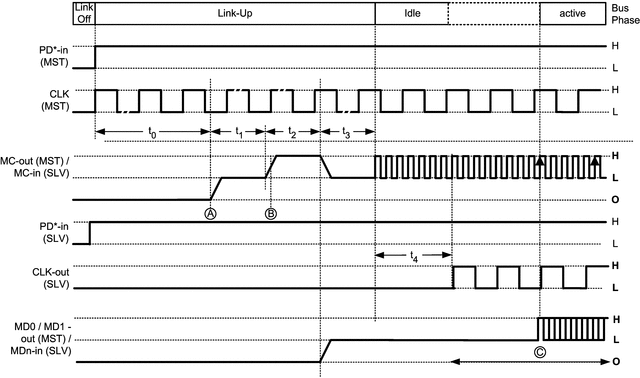

The Power_Down (PD*) input controls the power state of the MPL interface. When PD* is asserted, the MD1/0 and MC signals are powered down to save current.

The LM2502 implements the physical layer of the MPL Standard (MPL-0). The LM2502 is offered in NOPB (Lead-free) NFBGA and WQFN packages.

The LM2502 device is a dual link display interface SERDES that adapts existing CPU / video busses to a low power current-mode serial MPL link. The chipset may also be used for a RGB565 application with glue logic. The interconnect is reduced from 22 signals to only 3 active signals with the LM2502 chipset easing flex interconnect design, size and cost.

The Master Serializer (SER) resides beside an application processor or baseband processor and translates a parallel bus from LVCMOS levels to serial MPL levels for transmission over a flex cable and PCB traces to the Slave Deserializer (DES) located near the display module.

Dual display support is provided for a primary and sub display through the use of two ChipSelect signals. A Mode pin selects either a i80 or m68 style interface.

The Power_Down (PD*) input controls the power state of the MPL interface. When PD* is asserted, the MD1/0 and MC signals are powered down to save current.

The LM2502 implements the physical layer of the MPL Standard (MPL-0). The LM2502 is offered in NOPB (Lead-free) NFBGA and WQFN packages.
