ACTIVE
Architecture |
Current FB |
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
9 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
33 |
GBW (typ) (MHz) |
420 |
BW at Acl (MHz) |
420 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
6500 |
Vn at flatband (typ) (nV√Hz) |
1.6 |
Vn at 1 kHz (typ) (nV√Hz) |
1.6 |
Iq per channel (typ) (mA) |
6.6 |
Vos (offset voltage at 25°C) (max) (mV) |
3 |
Rail-to-rail |
No |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
CMRR (typ) (dB) |
73 |
Input bias current (max) (pA) |
10000000 |
Offset drift (typ) (µV/°C) |
5 |
Iout (typ) (mA) |
120 |
2nd harmonic (dBc) |
80 |
3rd harmonic (dBc) |
80 |
Frequency of harmonic distortion measurement (MHz) |
10 |

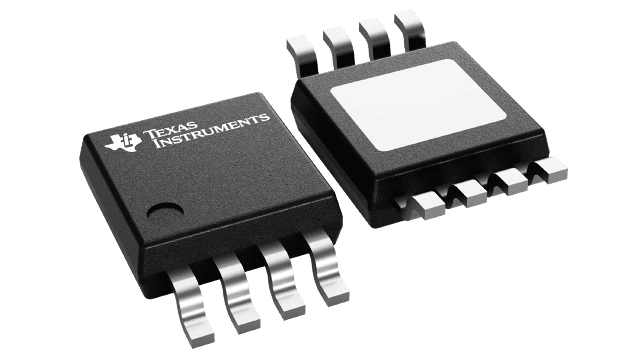

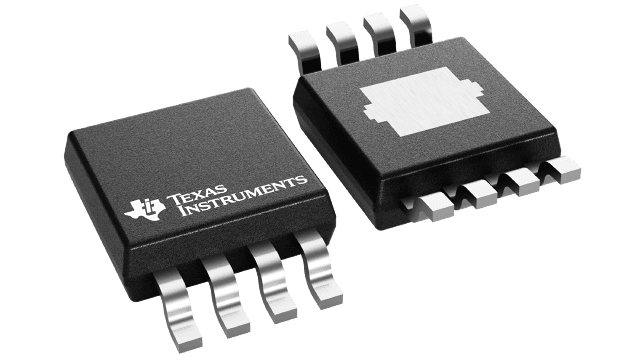

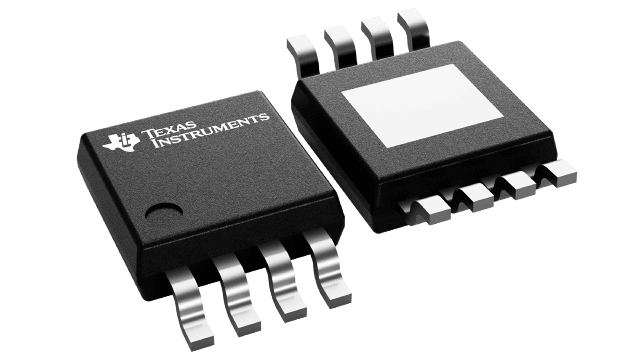

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9

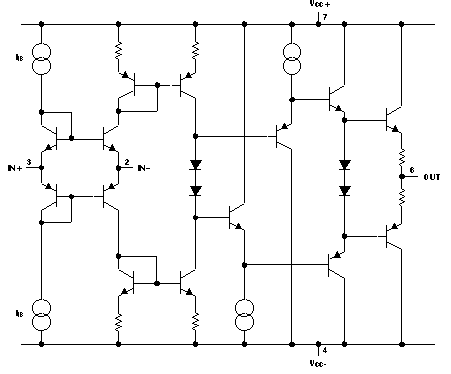

The THS3001 is a high-speed, current-feedback operational amplifier, designed for communication, imaging, and high-quality video applications. This device offers a very fast 6500V/µs slew rate, a 420MHz bandwidth, and a 40ns settling time for large-signal applications requiring excellent transient response. In addition, the THS3001 operates with a very low distortion of –96dBc, making this device an excellent choice for applications such as wireless communication base stations or ultra-fast ADC or DAC buffers.
