ACTIVE
Rating |
Automotive |
Topology |
Buck |
Iout (max) (A) |
3 |
Vin (max) (V) |
36 |
Vin (min) (V) |
3 |
Vout (max) (V) |
34 |
Vout (min) (V) |
1 |
Features |
Enable, Frequency synchronization, Light Load Efficiency, Over Current Protection, Power good, Soft Start Fixed, Spread Spectrum, Synchronous Rectification, Wettable flanks package |
EMI features |
Low parasitic Hotrod packaging, Spread Spectrum |
Control mode |
current mode |
Operating temperature range (°C) |
-40 to 150 |
Iq (typ) (A) |
0.000004 |
Duty cycle (max) (%) |
98 |
TI functional safety category |
Functional Safety-Capable |
WQFN-HR (RAK)-9-5 mm² 2.5 x 2

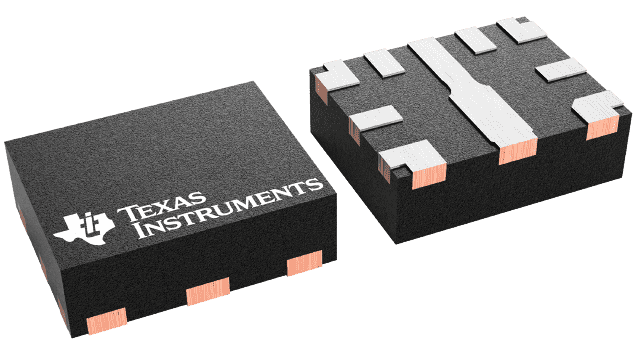

The LMR60430-Q1 is a 3V to 36V (42V transient), 3A, automotive-grade synchronous buck converter with Zero EMI and Noise (ZEN) 1 switcher technology. The LMR60430-Q1 is available in an ultra compact 2.5mm × 2mm HotRod™ QFN-9 package with wettable flanks available, that helps minimize inductance and achieve low EMI performance to facilitate qualification of automotive and other noise-sensitive designs.
All device variants are capable of output voltages ranging from 1V to 20V in adjustable output configuration. Each variant is also capable of delivering a fixed output voltage by connecting the output voltage node directly to the feedback pin. The Device Comparison Table provides details on the fixed output voltage options. The current-mode control architecture with 30ns minimum on-time allows high conversion ratios at high frequencies, fast transient response, and excellent load and line regulation.
Open drain power-good output facilitates power sequencing requirements. The MODE/SYNC pin of the LMR60430-Q1 allows the user to select between forced pulse width modulation (FPWM), auto mode, or external synchronization mode of operation.
The LMR60430-Q1 is designed to offer reduced output capacitance leading to compact PCB layout and system cost savings. The LMR60430-Q1 is a part of a family of pin-compatible devices ranging in current levels from 0.6A to 6A.
