IWR1443
  • IWR1443
  • IWR1443

IWR1443

ACTIVE

Single-chip 76-GHz to 81-GHz mmWave sensor integrating MCU and hardware accelerator

Texas Instruments IWR1443 Product Info

1 April 2026 0

Parameters

Type

IC

Frequency range

76 - 81 GHz

Number of receivers

4

Number of transmitters

3

ADC sampling rate (ksps)

37500

TX power (dBm)

12

Arm CPU

Arm Cortex-R4F at 200 MHz

Hardware accelerators

Radar hardware accelerator

Edge AI enabled

Yes

Interface type

CAN, CSI-2, I2C, LVDS, QSPI, SPI, UART

RAM (kByte)

576

Operating temperature range (°C)

-40 to 105

Power supply solution

LP87702-Q1, LP87745-Q1

Rating

Catalog

Package

FCCSP (ABL)-161-108.16 mm² 10.4 x 10.4

Features

  • FMCW Transceiver
    • Integrated PLL, Transmitter, Receiver, Baseband, and A2D
    • 76- to 81-GHz Coverage With 4-GHz Continuous Bandwidth
    • Four Receive Channels
    • Three Transmit Channels (Two Can be Used Simultaneously)
    • Ultra-Accurate Chirp Engine Based on Fractional-N PLL
    • TX Power: 12 dBm
    • RX Noise Figure:
      • 14 dB (76 to 77 GHz)
      • 15 dB (77 to 81 GHz)
    • Phase Noise at 1 MHz:
      • –95 dBc/Hz (76 to 77 GHz)
      • –93 dBc/Hz (77 to 81 GHz)
  • Built-in Calibration and Self-Test
    • ARM® Cortex®-R4F-Based Radio Control System
    • Built-in Firmware (ROM)
    • Self-calibrating System Across Frequency and Temperature
  • On-Chip Programmable Core for Embedded User Application
    • Integrated Cortex®-R4F Microcontroller Clocked at 200 MHz
    • On-Chip Bootloader Supports Autonomous Mode (Loading User Application From QSPI Flash Memory)
    • Integrated Peripherals
      • Internal Memories With ECC
      • Radar Hardware Accelerator (FFT, Log-magnitude Computations, and others)
      • Integrated Timers (Watch Dog and up to Four 32-Bit or Two 64-Bit Timers)
      • I2C (Master and Slave Modes Supported)
      • Two SPI Ports
      • CAN Port
      • Up to Six General-Purpose ADC Ports
  • High-Speed Data Interface to Support Distributed Applications
  • Host Interface
    • Control Interface With External Processor Over SPI
    • Data Interface With External Processor Over MIPI D-PHY and CSI2 V1.1
    • Interrupts for Fault Reporting
  • IWR1443 Advanced Features
    • Embedded Self-monitoring With No Host Processor Involvement
    • Complex Baseband Architecture
    • Embedded Interference Detection Capability
  • Power Management
    • Built-in LDO Network for Enhanced PSRR
    • I/Os Support Dual Voltage 3.3 V/1.8 V
  • Clock Source
    • Supports External Oscillator at 40 MHz
    • Supports Externally Driven Clock (Square/Sine) at 40 MHz
  • Easy Hardware Design

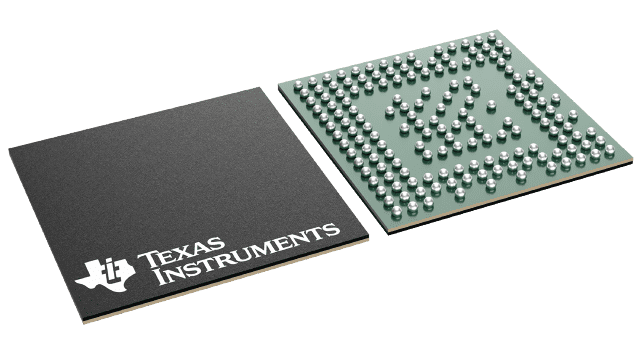

    • 0.65-mm Pitch, 161-Pin 10.4 mm × 10.4 mm Flip Chip BGA Package for Easy Assembly and Low-Cost PCB Design
    • Small Solution Size
  • Operating Conditions
    • Junction Temp Range: –40°C to 105°C
  • FMCW Transceiver
    • Integrated PLL, Transmitter, Receiver, Baseband, and A2D
    • 76- to 81-GHz Coverage With 4-GHz Continuous Bandwidth
    • Four Receive Channels
    • Three Transmit Channels (Two Can be Used Simultaneously)
    • Ultra-Accurate Chirp Engine Based on Fractional-N PLL
    • TX Power: 12 dBm
    • RX Noise Figure:
      • 14 dB (76 to 77 GHz)
      • 15 dB (77 to 81 GHz)
    • Phase Noise at 1 MHz:
      • –95 dBc/Hz (76 to 77 GHz)
      • –93 dBc/Hz (77 to 81 GHz)
  • Built-in Calibration and Self-Test
    • ARM® Cortex®-R4F-Based Radio Control System
    • Built-in Firmware (ROM)
    • Self-calibrating System Across Frequency and Temperature
  • On-Chip Programmable Core for Embedded User Application
    • Integrated Cortex®-R4F Microcontroller Clocked at 200 MHz
    • On-Chip Bootloader Supports Autonomous Mode (Loading User Application From QSPI Flash Memory)
    • Integrated Peripherals
      • Internal Memories With ECC
      • Radar Hardware Accelerator (FFT, Log-magnitude Computations, and others)
      • Integrated Timers (Watch Dog and up to Four 32-Bit or Two 64-Bit Timers)
      • I2C (Master and Slave Modes Supported)
      • Two SPI Ports
      • CAN Port
      • Up to Six General-Purpose ADC Ports
  • High-Speed Data Interface to Support Distributed Applications
  • Host Interface
    • Control Interface With External Processor Over SPI
    • Data Interface With External Processor Over MIPI D-PHY and CSI2 V1.1
    • Interrupts for Fault Reporting
  • IWR1443 Advanced Features
    • Embedded Self-monitoring With No Host Processor Involvement
    • Complex Baseband Architecture
    • Embedded Interference Detection Capability
  • Power Management
    • Built-in LDO Network for Enhanced PSRR
    • I/Os Support Dual Voltage 3.3 V/1.8 V
  • Clock Source
    • Supports External Oscillator at 40 MHz
    • Supports Externally Driven Clock (Square/Sine) at 40 MHz
  • Easy Hardware Design
    • 0.65-mm Pitch, 161-Pin 10.4 mm × 10.4 mm Flip Chip BGA Package for Easy Assembly and Low-Cost PCB Design
    • Small Solution Size
  • Operating Conditions
    • Junction Temp Range: –40°C to 105°C

Description

The IWR1443 device is an integrated single-chip mmWave sensor based on FMCW radar technology capable of operation in the 76- to 81-GHz band with up to 4 GHz continuous chirp. The device is built with TI’s low-power 45-nm RFCMOS process, and this solution enables unprecedented levels of integration in an extremely small form factor. The IWR1443 is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in the industrial applications such as building automation, factory automation, drones, material handling, traffic monitoring, and surveillance.

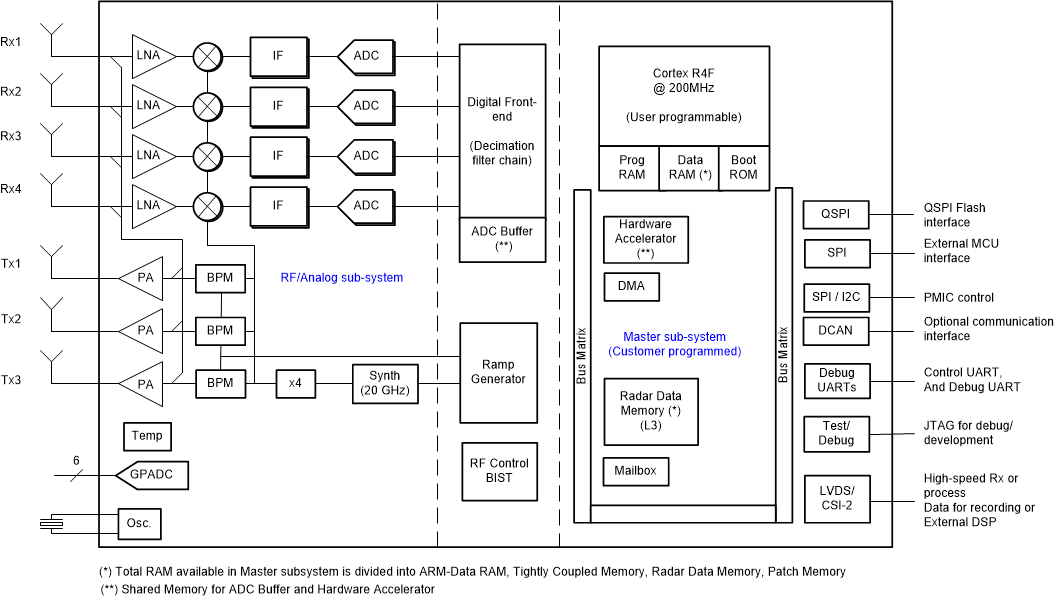

The IWR1443 device is a self-contained, single-chip solution that simplifies the implementation of mmWave sensors in the band of 76 to 81 GHz. The IWR1443 includes a monolithic implementation of a 3TX, 4RX system with built-in PLL and A2D converters. The device includes fully configurable hardware accelerator that supports complex FFT and CFAR detection. Additionally, the device includes two ARM R4F-based processor subsystems: one processor subsystem is for master control, and additional algorithms; a second processor subsystem is responsible for front-end configuration, control, and calibration. Simple programming model changes can enable a wide variety of sensor implementation with the possibility of dynamic reconfiguration for implementing a multimode sensor. Additionally, the device is provided as a complete platform solution including reference hardware design, software drivers, sample configurations, API guide, training, and user documentation.

The IWR1443 device is an integrated single-chip mmWave sensor based on FMCW radar technology capable of operation in the 76- to 81-GHz band with up to 4 GHz continuous chirp. The device is built with TI’s low-power 45-nm RFCMOS process, and this solution enables unprecedented levels of integration in an extremely small form factor. The IWR1443 is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in the industrial applications such as building automation, factory automation, drones, material handling, traffic monitoring, and surveillance.

The IWR1443 device is a self-contained, single-chip solution that simplifies the implementation of mmWave sensors in the band of 76 to 81 GHz. The IWR1443 includes a monolithic implementation of a 3TX, 4RX system with built-in PLL and A2D converters. The device includes fully configurable hardware accelerator that supports complex FFT and CFAR detection. Additionally, the device includes two ARM R4F-based processor subsystems: one processor subsystem is for master control, and additional algorithms; a second processor subsystem is responsible for front-end configuration, control, and calibration. Simple programming model changes can enable a wide variety of sensor implementation with the possibility of dynamic reconfiguration for implementing a multimode sensor. Additionally, the device is provided as a complete platform solution including reference hardware design, software drivers, sample configurations, API guide, training, and user documentation.
