Number of channels |
2 |
Rating |
Automotive |
Forward/reverse channels |
1 forward / 1 reverse |
Integrated isolated power |
No |
Isolation rating |
Basic, Reinforced |
Default output |
High, Low |
Data rate (max) (Mbps) |
50 |
Protocols |
GPIO, PWM, UART |
Surge isolation voltage (VIOSM) (VPK) |
6500, 10000 |
Transient isolation voltage (VIOTM) (VPK) |
4242, 7071 |
Withstand isolation voltage (VISO) (Vrms) |
3000, 5000 |
CMTI (min) (V/µs) |
100000 |
Operating temperature range (°C) |
-40 to 125 |
Supply voltage (max) (V) |
5.5 |
Supply voltage (min) (V) |
1.71 |
Propagation delay time (typ) (µs) |
0.011 |
Current consumption per channel (DC) (typ) (mA) |
1.2 |
Current consumption per channel (1 Mbps) (typ) (mA) |
1.8 |
Creepage (min) (mm) |
4, 8 |
Clearance (min) (mm) |
4, 8 |
TI functional safety category |
Functional Safety-Capable |
SOIC (D)-8-29.4 mm² 4.9 x 6
The ISO672x-Q1 devices are high-performance, dual-channel digital isolators ideal for cost sensitive applications requiring up to 5000 VRMS (DWV package) and 3000 VRMS (D package) isolation ratings per UL 1577. These devices are also certified by VDE, TUV, CSA, and CQC.

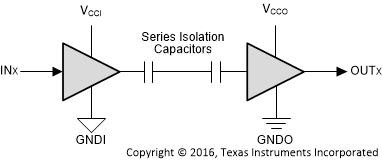

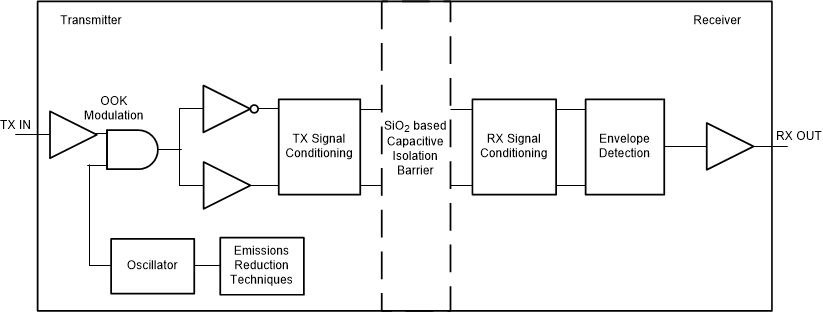

The ISO672x-Q1 devices provide high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by TIs double capacitive silicon dioxide (SiO2) insulation barrier. The ISO6720-Q1 device has 2 isolation channels with both channels in the same direction. The ISO6721-Q1 device has 2 isolation channels with 1 channel in each direction. In the event of input power or signal loss, the default output is high for devices without suffix F and low for devices with suffix F. See Device Functional Modes section for further details.
