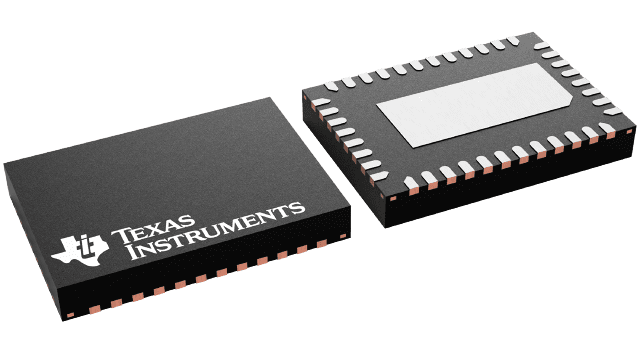

TPS51315
  • TPS51315

TPS51315

ACTIVE

3-V to 14-V, 10-A synchronous buck converter with D-CAP control

Texas Instruments TPS51315 Product Info

1 April 2026 0

Parameters

Rating

Catalog

Topology

Buck

Iout (max) (A)

10

Vin (max) (V)

14

Vin (min) (V)

3

Vout (max) (V)

5.5

Vout (min) (V)

0.75

Control mode

D-CAP

Features

Enable, Forced PWM, Light-load efficiency, Output discharge, Power good, Prebias startup, Soft-start fixed, Synchronous rectification

Duty cycle (max) (%)

100

Iq (typ) (A)

0.0004

Number of phases

1

Operating temperature range (°C)

-40 to 125

Package

VQFN (RGF)-40-35 mm² 7 x 5

Features

  • Input Voltage Range: 3 V to 14 V
  • Output Voltage Range: 0.75 V to 5.5 V
  • Integrated Power MOSFETs with 10-A Continuous Current Output
  • < 5-µA Shutdown Current
  • D-CAP™ Mode with Fast Transient Response
  • Programmable Switching Frequency with External Resistor From 100 kHz to 1 MHz
  • Selectable Auto-Skip or PWM-Only Operation
  • < 1% Initial Reference Accuracy
  • Internal Soft-Start Control
  • Integrated Boost Diode
  • Power Good Signal
  • Adjustable Overcurrent Limit via External Resistor
  • OVP/UVP/UVLO Protection
  • Integrated Selectable Output Discharge
  • Prebias Output Voltage Start-Up with Disabled Output Discharge
  • Thermal Shutdown
  • 40-Pin QFN Package with PowerPAD™
  • Supports All Ceramic Output Capacitors
  • Input Voltage Range: 3 V to 14 V
  • Output Voltage Range: 0.75 V to 5.5 V
  • Integrated Power MOSFETs with 10-A Continuous Current Output
  • < 5-µA Shutdown Current
  • D-CAP™ Mode with Fast Transient Response
  • Programmable Switching Frequency with External Resistor From 100 kHz to 1 MHz
  • Selectable Auto-Skip or PWM-Only Operation
  • < 1% Initial Reference Accuracy
  • Internal Soft-Start Control
  • Integrated Boost Diode
  • Power Good Signal
  • Adjustable Overcurrent Limit via External Resistor
  • OVP/UVP/UVLO Protection
  • Integrated Selectable Output Discharge
  • Prebias Output Voltage Start-Up with Disabled Output Discharge
  • Thermal Shutdown
  • 40-Pin QFN Package with PowerPAD™
  • Supports All Ceramic Output Capacitors

Description

The TPS51315 is a D-CAP™ Mode, 10-A, synchronous step-down converter with integrated MOSFETs. The combination of D-CAP™ mode and on-board MOSFETs provides fast transient response performance with ease of use, less external component count and small footprint. Externally adjustable switching frequency allows optimal design between component size and efficiency tradeoff. Ceramic output capacitors can be employed by adding a few extra components. The TPS51315 is available in the thermally-efficient 40-pin, 5 mm × 7 mm, QFN package and is specified from –40°C to 85°C ambient.

The TPS51315 is a D-CAP™ Mode, 10-A, synchronous step-down converter with integrated MOSFETs. The combination of D-CAP™ mode and on-board MOSFETs provides fast transient response performance with ease of use, less external component count and small footprint. Externally adjustable switching frequency allows optimal design between component size and efficiency tradeoff. Ceramic output capacitors can be employed by adding a few extra components. The TPS51315 is available in the thermally-efficient 40-pin, 5 mm × 7 mm, QFN package and is specified from –40°C to 85°C ambient.
