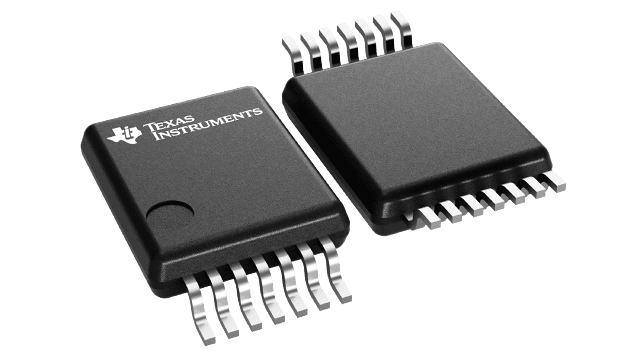

SN74LV11A

ACTIVE

3-ch, 3-input 2-V to 5.5-V high-speed (7 ns) AND gate

Texas Instruments SN74LV11A Product Info

1 April 2026 0

Parameters

Technology family

LV-A

Supply voltage (min) (V)

2

Supply voltage (max) (V)

5.5

Number of channels

3

Inputs per channel

3

IOL (max) (mA)

12

IOH (max) (mA)

-12

Input type

Standard CMOS

Output type

Push-Pull

Features

Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)

Data rate (max) (Mbps)

70

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

SOIC (D)-14-51.9 mm² 8.65 x 6

Features

  • Operation of 2V to 5.5V VCC
  • Max tpd of 7ns at 5V
  • Typical VOLP (output ground bounce) <0.8V at VCC = 3.3V, TA = 25°C
  • Typical VOHV (output VOH undershoot) >2.3V at VCC = 3.3V, TA = 25°C
  • Support mixed-mode voltage operation on all ports
  • Ioff supports partial-power-down mode operation
  • Latch-up performance exceeds 100mA per JESD 78, Class II
  • Operation of 2V to 5.5V VCC
  • Max tpd of 7ns at 5V
  • Typical VOLP (output ground bounce) <0.8V at VCC = 3.3V, TA = 25°C
  • Typical VOHV (output VOH undershoot) >2.3V at VCC = 3.3V, TA = 25°C
  • Support mixed-mode voltage operation on all ports
  • Ioff supports partial-power-down mode operation
  • Latch-up performance exceeds 100mA per JESD 78, Class II

Description

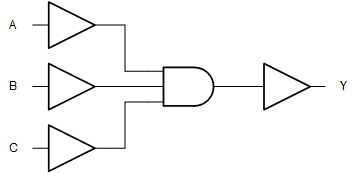

These triple 3-input positive-AND gates are designed for 2V to 5.5V VCC operation.

These triple 3-input positive-AND gates are designed for 2V to 5.5V VCC operation.
