INA183
  • INA183
  • INA183

INA183

ACTIVE

2.7-V to 26-V, high-precision current sense amplifier with input supply

Texas Instruments INA183 Product Info

1 April 2026 4

Parameters

Product type

Analog output

Common-mode voltage (max) (V)

26

Common-mode voltage (min) (V)

2.7

Input offset (±) (max) (µV)

170

Input offset drift (±) (typ) (µV/°C)

0.5

Features

High precision, Input supply

Rating

Catalog

Voltage gain (V/V)

50, 100, 200

CMRR (min) (dB)

100

Bandwidth (kHz)

14, 30, 80

Supply voltage (max) (V)

26

Supply voltage (min) (V)

2.7

Iq (max) (mA)

0.14

Number of channels

1

Comparators (#)

0

Gain error (%)

0.3

Gain error drift (±) (max) (ppm/°C)

10

Slew rate (V/µs)

0.4

Operating temperature range (°C)

-40 to 125

Package

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

Features

  • Wide Common-Mode Range: 2.7 V to 26 V
  • Offset Voltage: ±170 µV (Maximum) (Enables Shunt Drops of 10-mV Full-Scale)
  • Accuracy:
    • Gain Error ±0.4% (Maximum Over Temperature):
    • 0.5-µV/°C Offset Drift (Maximum)
    • 10-ppm/°C Gain Drift (Maximum)

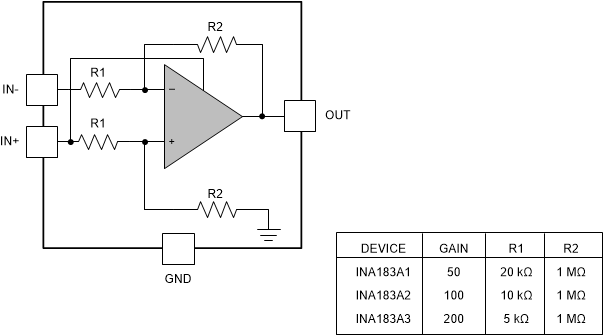

  • Choice of Gains:
    • INA183A1: 50 V/V
    • INA183A2: 100 V/V
    • INA183A3: 200 V/V
  • Quiescent Current: 130 µA (Maximum)
  • Package: 5-Pin SOT-23
  • Wide Common-Mode Range: 2.7 V to 26 V
  • Offset Voltage: ±170 µV (Maximum) (Enables Shunt Drops of 10-mV Full-Scale)
  • Accuracy:
    • Gain Error ±0.4% (Maximum Over Temperature):
    • 0.5-µV/°C Offset Drift (Maximum)
    • 10-ppm/°C Gain Drift (Maximum)
  • Choice of Gains:
    • INA183A1: 50 V/V
    • INA183A2: 100 V/V
    • INA183A3: 200 V/V
  • Quiescent Current: 130 µA (Maximum)
  • Package: 5-Pin SOT-23

Description

The INA183 is a high-precision voltage-output, current-shunt monitor (also called current-sense amplifier) commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This device can sense drops across shunt resistors at common-mode voltages from 2.7 V to 26 V. Three fixed gains are available: 50 V/V, 100 V/V, and 200 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.

This device operates by drawing power from the IN+ pin drawing a maximum of 130 µA of supply current. All versions are specified from –40 °C to 125 °C and are offered in the 5-pin SOT-23 package.
