ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
32 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
3 |
Rail-to-rail |
In to V- |
GBW (typ) (MHz) |
0.7 |
Slew rate (typ) (V/µs) |
0.3 |
Vos (offset voltage at 25°C) (max) (mV) |
2 |
Iq per channel (typ) (mA) |
0.35 |
Vn at 1 kHz (typ) (nV√Hz) |
40 |
Rating |
Military |
Operating temperature range (°C) |
-55 to 125 |
Offset drift (typ) (µV/°C) |
7 |
Input bias current (max) (pA) |
50000 |
CMRR (typ) (dB) |
80 |
Iout (typ) (A) |
0.03 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
0 |
Input common mode headroom (to positive supply) (typ) (V) |
0 |
Output swing headroom (to negative supply) (typ) (V) |
0.02 |
Output swing headroom (to positive supply) (typ) (V) |
-3 |

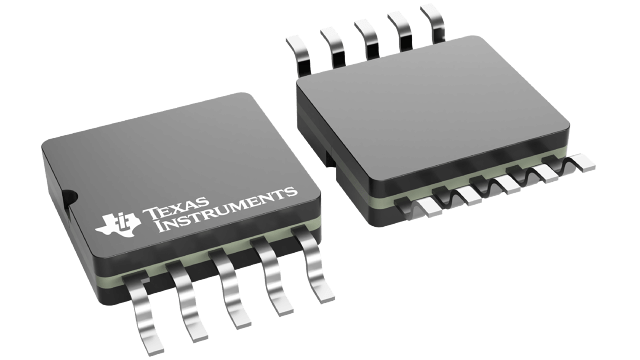

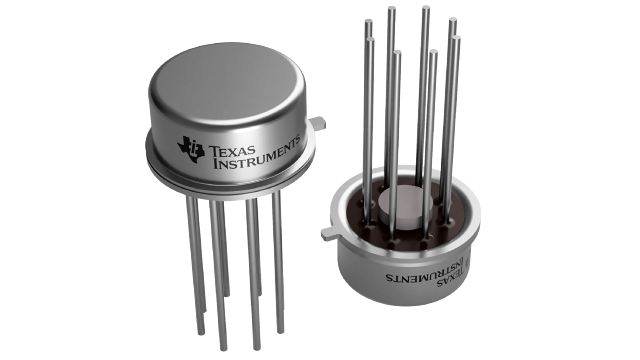

CDIP (NAB)-8-79.9592 mm² 10.16 x 7.87
All trademarks are the property of their respective owners.

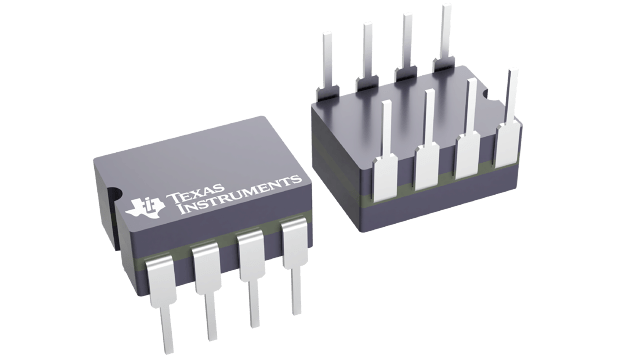

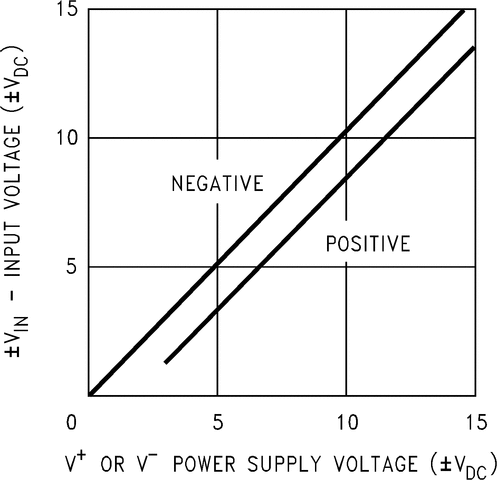

The LM158 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

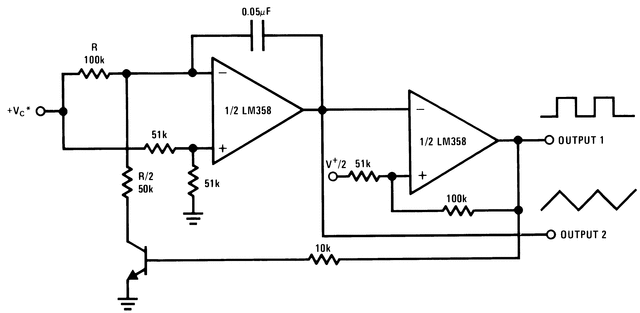

Application areas include transducer amplifiers, dc gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems. For example, the LM158 series can be directly operated off of the standard +5V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.
