ACTIVE
Number of channels |
1 |
Vs (max) (V) |
36 |
Vs (min) (V) |
4.5 |
Input offset (±) (max) (µV) |
50 |
Voltage gain (min) (V/V) |
1 |
Voltage gain (max) (V/V) |
10000 |
Noise at 1 kHz (typ) (nV√Hz) |
11 |
Features |
Overvoltage protection |
CMRR (min) (dB) |
115 |
Input offset drift (±) (max) (µV/°C) |
0.25 |
Input bias current (±) (max) (nA) |
2 |
Iq (typ) (mA) |
2.2 |
Bandwidth at min gain (typ) (MHz) |
1 |
Gain error (±) (max) (%) |
0.5 |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Catalog |
Type |
Resistor |
Gain nonlinearity (±) (max) (%) |
0.002 |
Output swing headroom (to negative supply) (typ) (V) |
1.3 |
Output swing headroom (to positive supply) (typ) (V) |
-1.3 |
Input common mode headroom (to negative supply) (typ) (V) |
1.5 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.5 |
Noise at 0.1 Hz to 10 Hz (typ) (µVPP) |
0.4 |

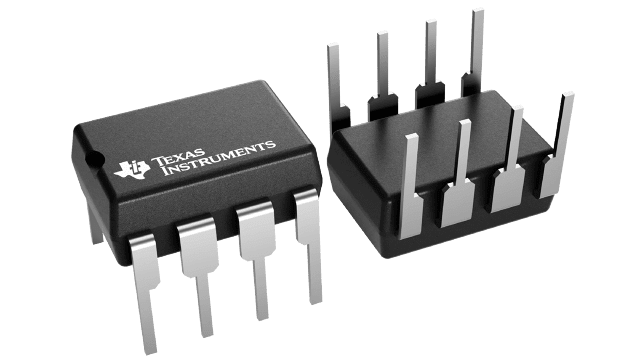

PDIP (P)-8-92.5083 mm² 9.81 x 9.43

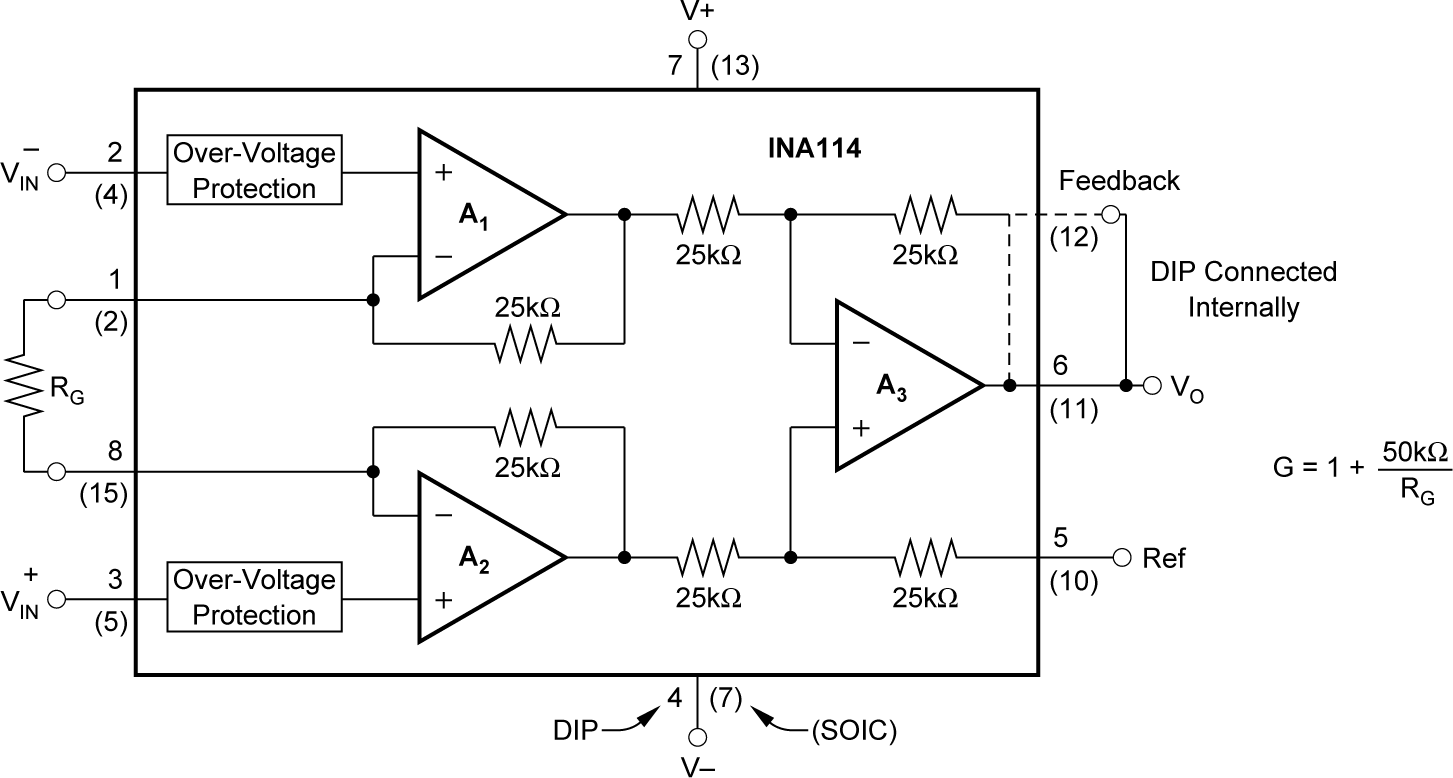

The INA114 is a low-cost, general-purpose instrumentation amplifier offering excellent accuracy. The versatile three-op-amp design and small size make this device an excellent choice for a wide range of applications.
A single external resistor sets any gain from 1 to 10,000. Internal input protection withstands up to ±40V without damage.
The INA114 is laser trimmed for very low offset voltage (50µV), low drift (0.3µV/°C), and high common-mode rejection (115dB at G = 1000). The device operates with power supplies as low as ±2.25V, allowing use in battery-operated and single 5V supply systems.
The INA114 is available in 8-pin PDIP and 16-pin SOIC surface-mount packages. Both are specified for a temperature range of −40°C to +85°C.
