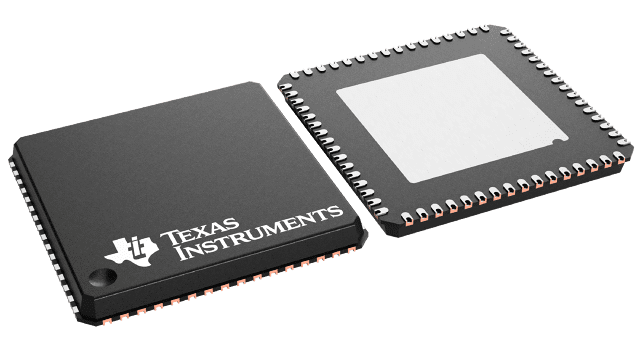

DS90UH941AS-Q1
  • DS90UH941AS-Q1

DS90UH941AS-Q1

ACTIVE

2K DSI to FPD-Link III bridge serializer with video splitting and HDCP

Texas Instruments DS90UH941AS-Q1 Product Info

1 April 2026 4

Parameters

Applications

In-vehicle Infotainment (IVI)

Input compatibility

MIPI DSI

Function

Serializer

Output compatibility

FPD-Link III LVDS

Color depth (bpp)

24

Features

HDCP

Signal conditioning

Adaptive Equalizer

EMI reduction

BIST

Diagnostics

BIST

Rating

Automotive

Operating temperature range (°C)

-40 to 105

TI functional safety category

Functional Safety-Capable

Package

VQFNP (RTD)-64-81 mm² 9 x 9

Features

  • AEC-Q100 qualified for automotive applications with the following results:
    • Device temperature grade 2: −40℃ to +105℃ ambient operating temperature
  • Supports pixel clock frequency up to 210 MHz for 3K (2880x1620) at 30Hz, QXGA (2048x1536), 2K (2880x1080), WUXGA (1920x1200), or 1080p60 (1920x1080) resolutions with 24-bit color depth
  • MIPI D-PHY / Display Serial Interface (DSI) receiver provides a high-bandwidth interface to video processor or FPGA
    • Dual DSI input ports with up to 4 data lanes each
    • Up to 1.5 Gbps per lane
    • Superframe with symmetric and asymmetric unpacking capability
    • ECC and CRC generation
    • Virtual channel capability
  • Single and dual FPD-Link III outputs
    • Single link: up to 105MHz pixel clock
    • Dual link: up to 210MHz pixel clock

  • Functional Safety-Capable

    • Documentation available to aid ISO 26262 system design

  • Symmetric and asymmetric video splitting
  • Integrated HDCP v1.4 cipher engine with on-chip key storage
  • AEC-Q100 qualified for automotive applications with the following results:
    • Device temperature grade 2: −40℃ to +105℃ ambient operating temperature
  • Supports pixel clock frequency up to 210 MHz for 3K (2880x1620) at 30Hz, QXGA (2048x1536), 2K (2880x1080), WUXGA (1920x1200), or 1080p60 (1920x1080) resolutions with 24-bit color depth
  • MIPI D-PHY / Display Serial Interface (DSI) receiver provides a high-bandwidth interface to video processor or FPGA
    • Dual DSI input ports with up to 4 data lanes each
    • Up to 1.5 Gbps per lane
    • Superframe with symmetric and asymmetric unpacking capability
    • ECC and CRC generation
    • Virtual channel capability
  • Single and dual FPD-Link III outputs
    • Single link: up to 105MHz pixel clock
    • Dual link: up to 210MHz pixel clock

  • Functional Safety-Capable

    • Documentation available to aid ISO 26262 system design

  • Symmetric and asymmetric video splitting
  • Integrated HDCP v1.4 cipher engine with on-chip key storage

Description

The DS90UH941AS-Q1 is a dual DSI to FPD-Link III bridge serializer designed for automotive infotainment applications. When paired with an FPD-Link III DS90UH940N-Q1, DS90UH948-Q1, DS90UH924-Q1, DS90UH926-Q1, or DS90UH928-Q1 deserializer, the DS90UH941AS-Q1 can supply 1- or 2-lane high-speed serial streams over cost-effective, 50- Ω, single-ended coaxial cables or over 100- Ω, differential shielded twisted-pair (STP) and shielded twisted-quad (STQ) cables. In response to the rise in number and variance of displays in infotainment systems, the DS90UH941AS-Q1 can support symmetric and asymmetric splitting.

The DS90UH941AS-Q1 can consolidate video data over two differential pairs to simplify system design and decrease the interconnect size and weight of the application.

The FPD-Link III interface supports video and audio data transmission and full duplex control, including I2C communication and up to eight I2S audio channels over the same high-speed serial link. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization.
