DLP471NE
  • DLP471NE
  • DLP471NE

DLP471NE

ACTIVE

0.47-inch 1080p HSSI DLP® digital micromirror device (DMD)

Texas Instruments DLP471NE Product Info

1 April 2026 3

Parameters

Display resolution (max)

1080p (1920x1080)

System brightness (max) (lm)

5500

Array diagonal (in)

0.47

Chipset family

DLPC7540

Input frame rate (max) (Hz)

120

Micromirror array size

1920x1080

Micromirror pitch (m)

0.0000054

Rating

Catalog

Operating temperature range (°C)

0 to 70

Package

DLP-S451 (FYN)-149-718.06 mm² 32.2 x 22.3

Features

  • 0.47-inch diagonal micromirror array
    • 1080p (1920 × 1080) display resolution
    • 5.4µm micromirror pitch
    • ±17° micromirror tilt (relative to a flat surface)
    • Bottom illumination
  • High-speed serial interface (HSSI) input data bus
  • Supports full HD at up to 240Hz
  • Laser-phosphor, LED, RGB laser and lamp operation supported by the DLPC7540 display controller, and the DLPA100 power management and motor driver IC
  • 0.47-inch diagonal micromirror array
    • 1080p (1920 × 1080) display resolution
    • 5.4µm micromirror pitch
    • ±17° micromirror tilt (relative to a flat surface)
    • Bottom illumination
  • High-speed serial interface (HSSI) input data bus
  • Supports full HD at up to 240Hz
  • Laser-phosphor, LED, RGB laser and lamp operation supported by the DLPC7540 display controller, and the DLPA100 power management and motor driver IC

Description

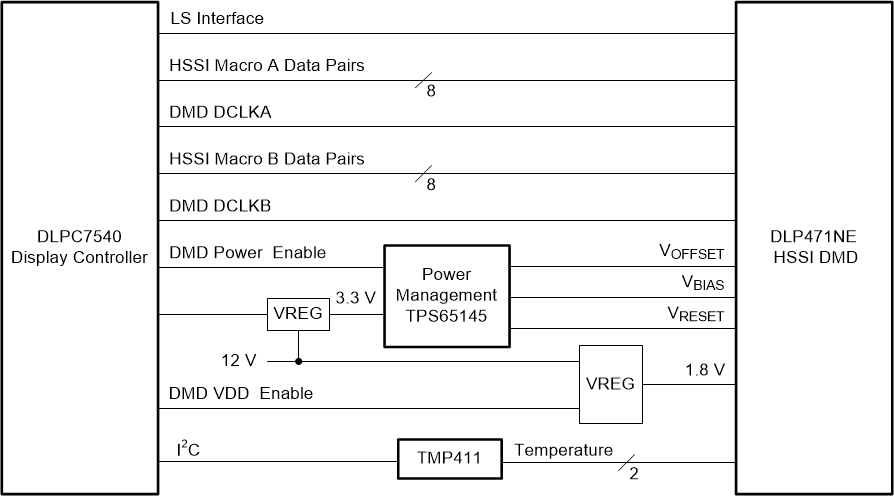

The DLP471NE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright full HD display systems. The TI DLP Products 0.47” full HD (1080p) chipset is composed of the DMD, DLPC7540 display controller, and DLPA100 Power and motor driver. The compact physical size of the chipset provides a complete system solution that enables small form factor full HD displays.

The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit the DLP® Products third-party search tools to find approved optical module manufacturers and third party providers.

Visit Getting Started With TI DLP Display Technology to learn more about how to start designing with the DMD.
