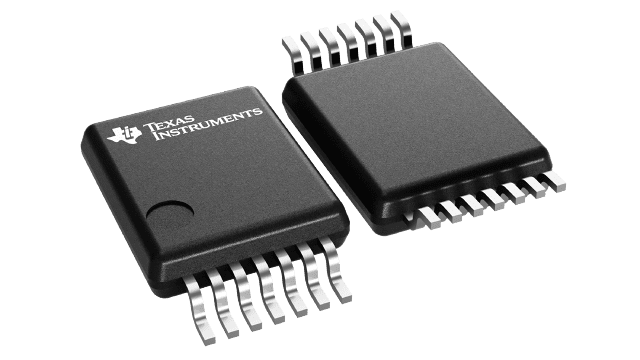

SN74LV06A

ACTIVE

6-ch, 2-V to 5.5-V inverters with open-drain outputs

Texas Instruments SN74LV06A Product Info

1 April 2026 0

Parameters

Technology family

LV-A

Supply voltage (min) (V)

2

Supply voltage (max) (V)

5.5

Number of channels

6

IOL (max) (mA)

16

IOH (max) (mA)

0

Supply current (max) (µA)

20

Input type

Standard CMOS

Output type

Open-drain

Features

Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

SOIC (D)-14-51.9 mm² 8.65 x 6

Features

  • VCC operation of 2 V to 5.5 V
  • Max tpd of 6.5 ns at 5 V
  • Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
  • Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
  • Outputs are disabled during power up and power down with inputs tied to VCC
  • Support mixed-mode voltage operation on all ports
  • Ioff supports live insertion, partial power down mode, and back drive protection
  • Latch-up performance exceeds 100 mA per JESD 78, Class II
  • VCC operation of 2 V to 5.5 V
  • Max tpd of 6.5 ns at 5 V
  • Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
  • Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
  • Outputs are disabled during power up and power down with inputs tied to VCC
  • Support mixed-mode voltage operation on all ports
  • Ioff supports live insertion, partial power down mode, and back drive protection
  • Latch-up performance exceeds 100 mA per JESD 78, Class II

Description

These hex inverter buffers/drivers are designed for 2 V to 5.5 V VCC operation.

The SN74LV06A device performs the Boolean function Y = A in positive logic.

The open-drain output require pull-up resistors to perform correctly and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.

These hex inverter buffers/drivers are designed for 2 V to 5.5 V VCC operation.

The SN74LV06A device performs the Boolean function Y = A in positive logic.

The open-drain output require pull-up resistors to perform correctly and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
