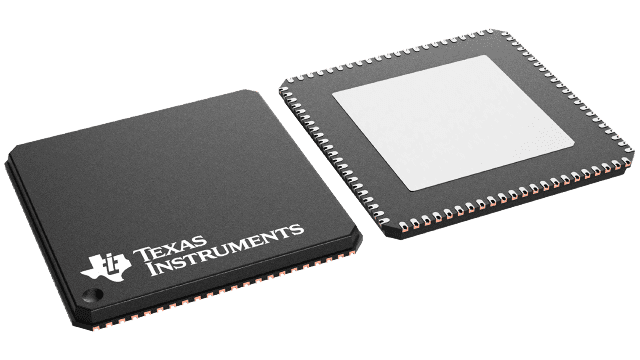

DS90UB988-Q1
  • DS90UB988-Q1

DS90UB988-Q1

ACTIVE

4K FPD-Link IV to OpenLDI deserializer

Texas Instruments DS90UB988-Q1 Product Info

1 April 2026 0

Parameters

Applications

In-vehicle Infotainment (IVI)

Input compatibility

FPD-Link IV LVDS

Function

Deserializer

Output compatibility

OpenLDI

Color depth (bpp)

30

Parallel video bandwidth (per port) (max) (Gbps)

25.9

Serial video bandwidth (per port) (max) (Gbps)

13.1

Features

Daisy chain, Low-EMI Point-to-Point Communication, Spread-Spectrum Clock (SSC) Generation

Signal conditioning

Adaptive Equalizer

EMI reduction

LVDS

Diagnostics

BIST

Rating

Automotive

Operating temperature range (°C)

-40 to 105

Package

VQFNP (RUR)-88-144 mm² 12 x 12

Features

  • OpenLDI (OLDI) transmitter
    • 2 Port OLDI output (Dual Pixel Link) up to 420MHz OLDI clock
    • Each Port supports 8MHz to 210MHz OLDI clock
    • Configurable 18-bit, 24-bit, 30-bit RGB
    • Stream synchronization and splitting
  • FPD-Link IV interface
    • Up to 13.5/12.528/10.8/6.75/3.375Gbps per channel; Up to 27Gbps over dual channels
    • Coax/STP interconnect support
    • Selectable 1, 2 channels
    • Daisy-chain and splitting
    • Adaptive equalization
  • Optional digital RGB parallel output interface supports 8MHz to 125MHz PCLK
  • Ultra-low latency control channel
    • Two fast-mode plus I2C up to 1MHz (up to 3.4MHz for local bus access)
    • High-speed GPIOs
    • Supports SPI and UART pass-through GPIOs
  • Backwards compatibility
    • 720p 92x and 1080p/2K 94x FPD-Link III product families
  • Security and diagnostics
    • Link diagnostics
    • Voltage and temperature monitoring
    • BIST and pattern generation
    • CRC and error diagnostics
    • ECC on control bits
    • Unique ID for counterfeit protection
  • Advanced link robustness and EMC control
    • Spread Spectrum Clocking Generation (SSCG)
    • Adaptive Receiver Equalization (AEQ)
  • Low power operation
    • 1.8V and 1.15V dual power supply
  • AEC-Q100 qualified for automotive applications
    • AEC-Q Grade-Level 2 , –40°C to 105°C
    • ISO 10605 and IEC 61000-4-2 ESD compliant
  • OpenLDI (OLDI) transmitter
    • 2 Port OLDI output (Dual Pixel Link) up to 420MHz OLDI clock
    • Each Port supports 8MHz to 210MHz OLDI clock
    • Configurable 18-bit, 24-bit, 30-bit RGB
    • Stream synchronization and splitting
  • FPD-Link IV interface
    • Up to 13.5/12.528/10.8/6.75/3.375Gbps per channel; Up to 27Gbps over dual channels
    • Coax/STP interconnect support
    • Selectable 1, 2 channels
    • Daisy-chain and splitting
    • Adaptive equalization
  • Optional digital RGB parallel output interface supports 8MHz to 125MHz PCLK
  • Ultra-low latency control channel
    • Two fast-mode plus I2C up to 1MHz (up to 3.4MHz for local bus access)
    • High-speed GPIOs
    • Supports SPI and UART pass-through GPIOs
  • Backwards compatibility
    • 720p 92x and 1080p/2K 94x FPD-Link III product families
  • Security and diagnostics
    • Link diagnostics
    • Voltage and temperature monitoring
    • BIST and pattern generation
    • CRC and error diagnostics
    • ECC on control bits
    • Unique ID for counterfeit protection
  • Advanced link robustness and EMC control
    • Spread Spectrum Clocking Generation (SSCG)
    • Adaptive Receiver Equalization (AEQ)
  • Low power operation
    • 1.8V and 1.15V dual power supply
  • AEC-Q100 qualified for automotive applications
    • AEC-Q Grade-Level 2 , –40°C to 105°C
    • ISO 10605 and IEC 61000-4-2 ESD compliant

Description

The DS90UB988-Q1 is an FPD-Link IV to OpenLDI bridge device. In conjunction with an FPD-Link IV serializer, the chipset receives a high-speed serialized interface over low-cost 50Ω coax or STP/STQ cables. The DS90UB988-Q1 supports OpenLDI (10 LVDS data lanes + 2 clocks) interface with video up to 420MHz PCLK. This provides a bridge between sources such as GPUs to connect to existing LVDS based displays or application processors.

The FPD-Link IV interface supports video and audio data transmission and full duplex control, including I2C, and GPIO data over the same link. Consolidation of video and control data over FPD-Link IV lanes reduces the interconnect size and weight and simplifies system design. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization. In backward compatible FPD-Link III mode, the device supports up to 2K resolutions with 24-bit color depth over a single/dual link .

The DS90UB988-Q1 is an FPD-Link IV to OpenLDI bridge device. In conjunction with an FPD-Link IV serializer, the chipset receives a high-speed serialized interface over low-cost 50Ω coax or STP/STQ cables. The DS90UB988-Q1 supports OpenLDI (10 LVDS data lanes + 2 clocks) interface with video up to 420MHz PCLK. This provides a bridge between sources such as GPUs to connect to existing LVDS based displays or application processors.

The FPD-Link IV interface supports video and audio data transmission and full duplex control, including I2C, and GPIO data over the same link. Consolidation of video and control data over FPD-Link IV lanes reduces the interconnect size and weight and simplifies system design. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization. In backward compatible FPD-Link III mode, the device supports up to 2K resolutions with 24-bit color depth over a single/dual link .
