Texas Instruments DS90LV018A Product Info

Parameters

Function	Receiver
Protocols	LVDS
Number of transmitters	0
Number of receivers	1
Supply voltage (V)	3.3
Signaling rate (Mbps)	400
Input signal	LVDS
Output signal	CMOS
Rating	Catalog
Operating temperature range (°C)	-40 to 85

Package

SOIC (D)-8-29.4 mm² 4.9 x 6

Features

>400 Mbps (200 MHz) Switching Rates
50 ps Differential Skew (Typical)
2.5 ns Maximum Propagation Delay
3.3V Power Supply Design
Flow-Through Pinout
Power Down High Impedance on LVDS Inputs
Low Power Design (18mW @ 3.3V Static)
Interoperable with Existing 5V LVDS Networks
Accepts Small Swing (350 mV Typical) Differential Signal Levels
Supports Open, Short and Terminated Input Fail-Safe
Conforms to ANSI/TIA/EIA-644 Standard
Industrial Temperature Operating Range
- (−40°C to +85°C)
Available in SOIC Package

All trademarks are the property of their respective owners.

>400 Mbps (200 MHz) Switching Rates
50 ps Differential Skew (Typical)
2.5 ns Maximum Propagation Delay
3.3V Power Supply Design
Flow-Through Pinout
Power Down High Impedance on LVDS Inputs
Low Power Design (18mW @ 3.3V Static)
Interoperable with Existing 5V LVDS Networks
Accepts Small Swing (350 mV Typical) Differential Signal Levels
Supports Open, Short and Terminated Input Fail-Safe
Conforms to ANSI/TIA/EIA-644 Standard
Industrial Temperature Operating Range
- (−40°C to +85°C)
Available in SOIC Package

All trademarks are the property of their respective owners.

Description

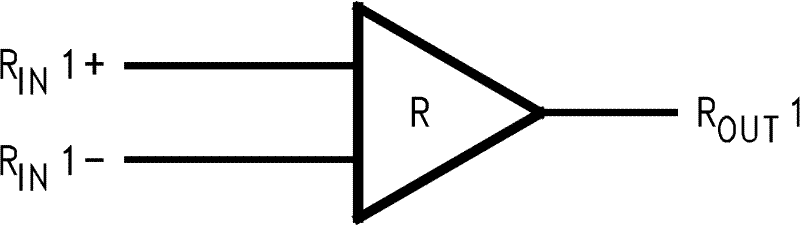

The DS90LV018A is a single CMOS differential line receiver designed for applications requiring ultra low power dissipation, low noise and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.

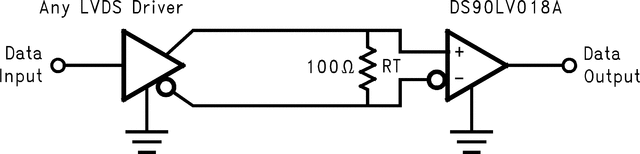

The DS90LV018A accepts low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels. The receiver also supports open, shorted and terminated (100Ω) input fail-safe. The receiver output will be HIGH for all fail-safe conditions. The DS90LV018A has a flow-through design for easy PCB layout.

The DS90LV018A and companion LVDS line driver provide a new alternative to high power PECL/ECL devices for high speed point-to-point interface applications.

The DS90LV018A is a single CMOS differential line receiver designed for applications requiring ultra low power dissipation, low noise and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.

The DS90LV018A accepts low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels. The receiver also supports open, shorted and terminated (100Ω) input fail-safe. The receiver output will be HIGH for all fail-safe conditions. The DS90LV018A has a flow-through design for easy PCB layout.

The DS90LV018A and companion LVDS line driver provide a new alternative to high power PECL/ECL devices for high speed point-to-point interface applications.
