DS90UB934-Q1
  • DS90UB934-Q1
  • DS90UB934-Q1

DS90UB934-Q1

ACTIVE

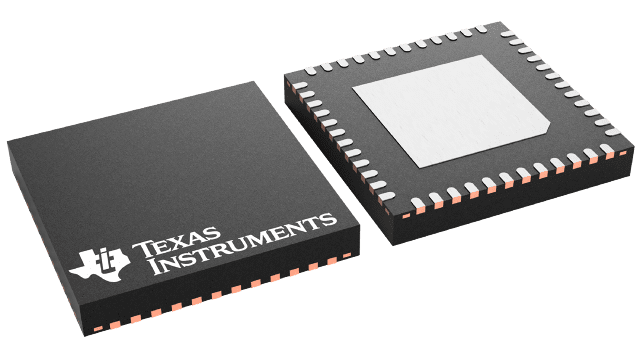

12-bit 100 MHz FPD-Link III Deserializer for 1MP/60fps and 2MP/30fps Cameras

Texas Instruments DS90UB934-Q1 Product Info

1 April 2026 0

Parameters

Applications

Advanced Driver Assistance Systems (ADAS)

Input compatibility

FPD-Link III LVDS

Function

Deserializer

Output compatibility

LVCMOS

Color depth (bpp)

12

Features

Low-EMI Point-to-Point Communication

Signal conditioning

Adaptive Equalizer

EMI reduction

BIST

Diagnostics

BIST

Rating

Automotive

Operating temperature range (°C)

-40 to 105

Package

VQFN (RGZ)-48-49 mm² 7 x 7

Features

  • Qualified for automotive applications
  • AEC-Q100 qualified for automotive applications with the following results:
    • Device temperature grade 2: –40°C to +105°C ambient operating temperature
    • Device HBM ESD classification level ±2 kV
    • Device CDM ESD classification level C4
  • Operates up to 100 MHz in 12-bit mode to support 1 MP/60 fps and 2 MP/30 fps imagers as well as satellite RADAR
  • Configurable 12-bit parallel CMOS compatible with DS90UB913A/933 serializers
  • Adaptive equalization compensates for cable aging and degradation effects
  • Ultra-low latency bi-directional control data channel with data protection
  • Cable link detect diagnostics
  • Supports Power-over-Coax operation (PoC)
  • ISO 10605 and IEC 61000-4-2 ESD compliant
  • Low radiated and conductive emissions
  • BIST (Built-In Self-Test)
  • Qualified for automotive applications
  • AEC-Q100 qualified for automotive applications with the following results:
    • Device temperature grade 2: –40°C to +105°C ambient operating temperature
    • Device HBM ESD classification level ±2 kV
    • Device CDM ESD classification level C4
  • Operates up to 100 MHz in 12-bit mode to support 1 MP/60 fps and 2 MP/30 fps imagers as well as satellite RADAR
  • Configurable 12-bit parallel CMOS compatible with DS90UB913A/933 serializers
  • Adaptive equalization compensates for cable aging and degradation effects
  • Ultra-low latency bi-directional control data channel with data protection
  • Cable link detect diagnostics
  • Supports Power-over-Coax operation (PoC)
  • ISO 10605 and IEC 61000-4-2 ESD compliant
  • Low radiated and conductive emissions
  • BIST (Built-In Self-Test)

Description

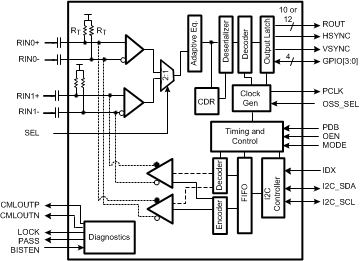

The DS90UB934-Q1 FPD-Link III deserializer, in conjunction with the DS90UB913A/933-Q1 serializers, supports the video transport needs with an ultra-high-speed forward channel and an embedded bidirectional control channel. The DS90UB934-Q1 converts the FPD-Link III stream into a parallel CMOS output interface designed to support automotive image sensors up to 12 bits at 100 MHz with resolutions including 1MP/60fps and 2MP/30fps.

The DS90UB933/934 chipset is fully AEC-Q100 qualified and designed to receive data across either 50-Ω single-ended coaxial or 100-Ω shielded-twisted pair (STP) cable assemblies. The DS90UB934-Q1 uses an advanced adaptive equalizer to allow support of various cable lengths and types with no additional programming required.

The DS90UB934-Q1 is improved over prior generations of ADAS FPD-Link III deserializer devices (such as DS90UB914A-Q1) offering higher bandwidth support with additional enhancements.

The DS90UB934-Q1 FPD-Link III deserializer, in conjunction with the DS90UB913A/933-Q1 serializers, supports the video transport needs with an ultra-high-speed forward channel and an embedded bidirectional control channel. The DS90UB934-Q1 converts the FPD-Link III stream into a parallel CMOS output interface designed to support automotive image sensors up to 12 bits at 100 MHz with resolutions including 1MP/60fps and 2MP/30fps.

The DS90UB933/934 chipset is fully AEC-Q100 qualified and designed to receive data across either 50-Ω single-ended coaxial or 100-Ω shielded-twisted pair (STP) cable assemblies. The DS90UB934-Q1 uses an advanced adaptive equalizer to allow support of various cable lengths and types with no additional programming required.

The DS90UB934-Q1 is improved over prior generations of ADAS FPD-Link III deserializer devices (such as DS90UB914A-Q1) offering higher bandwidth support with additional enhancements.
