DS90CR485
  • DS90CR485

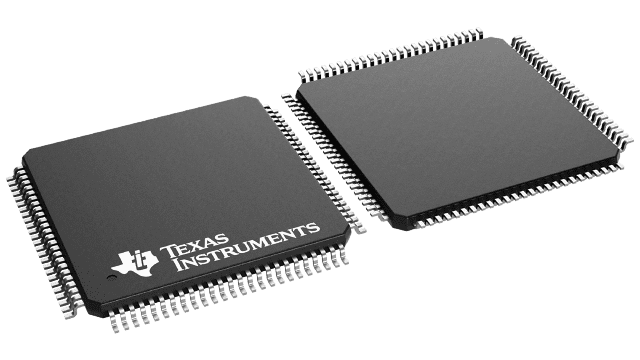

DS90CR485

ACTIVE

133-MHz 48-bit Channel Link serializer

Texas Instruments DS90CR485 Product Info

1 April 2026 1

Parameters

Protocols

Catalog

Rating

Catalog

Operating temperature range (°C)

-10 to 70

Package

QFP (NEZ)-100-256 mm² 16 x 16

Features

  • Up to 6.384-Gbps Throughput
  • 66-MHz to 133-MHz Input Clock Support
  • Reduces Cable and Connector Size and Cost
  • Pre‐Emphasis Reduces Cable Loading Effects
  • DC Balance Reduces ISI Distortion
  • 24-Bit Double Edge Inputs
  • 3-V Tolerant LVCMOS/LVTTL Inputs
  • Low Power, 2.5-V Supply
  • Flow-Through Pinout
  • 100-Pin TQFP Package
  • Conforms With TIA/EIA‐644-A LVDS Standard
  • Up to 6.384-Gbps Throughput
  • 66-MHz to 133-MHz Input Clock Support
  • Reduces Cable and Connector Size and Cost
  • Pre‐Emphasis Reduces Cable Loading Effects
  • DC Balance Reduces ISI Distortion
  • 24-Bit Double Edge Inputs
  • 3-V Tolerant LVCMOS/LVTTL Inputs
  • Low Power, 2.5-V Supply
  • Flow-Through Pinout
  • 100-Pin TQFP Package
  • Conforms With TIA/EIA‐644-A LVDS Standard

Description

The DS90CR485 device serializes the 24 LVCMOS/LVTTL double-edge inputs (48 bits data latched in per clock cycle) onto eight Low Voltage Differential Signaling (LVDS) streams. A phase-locked transmit clock is also in parallel with the data streams over a 9th LVDS link. The reduction of the wide TTL bus to a few LVDS lines reduces cable and connector size and cost. The double-edge input strobes data on both the rising and falling edges of the clock. This minimizes the pin count required and simplifies PCB routing between the host chip and the serializer.

This chip can help resolve EMI and interconnect size problems for high throughput point-to-point applications.

The DS90CR485 is compatible with the DS90CR486 Channel-Link receiver. The device is also backward-compatible with other Channel-Link receivers such as the DS90CR482 and DS90CR484.
