CSD17581Q5A
  • CSD17581Q5A
  • CSD17581Q5A

CSD17581Q5A

ACTIVE

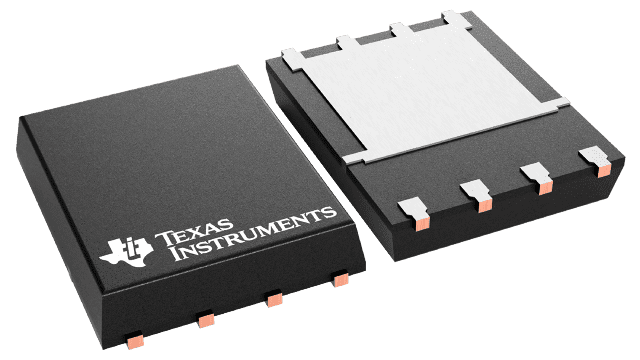

30-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 4.2 mOhm

Texas Instruments CSD17581Q5A Product Info

1 April 2026 1

Parameters

VDS (V)

30

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

3.4

Rds(on) at VGS=4.5 V (max) (mΩ)

4.2

VGSTH typ (typ) (V)

1.3

QG (typ) (nC)

20

QGD (typ) (nC)

4

QGS (typ) (nC)

6.9

ID - silicon limited at TC=25°C (A)

123

ID - package limited (A)

60

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

VSONP (DQJ)-8-29.4 mm² 4.9 x 6

Features

  • Low Qg and Qgd
  • Low RDS(on)
  • Low Thermal Resistance
  • Avalanche Rated
  • Lead-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5-mm × 6-mm Plastic Package
  • Low Qg and Qgd
  • Low RDS(on)
  • Low Thermal Resistance
  • Avalanche Rated
  • Lead-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5-mm × 6-mm Plastic Package

Description

This 30-V, 2.9-mΩ, SON 5-mm × 6-mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

This 30-V, 2.9-mΩ, SON 5-mm × 6-mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
