ACTIVE
Number of receivers |
4 |
Number of transmitters |
0 |
Duplex |
Half |
Supply voltage (nom) (V) |
3.3 |
Signaling rate (max) (Mbps) |
30 |
IEC 61000-4-2 contact (±V) |
None |
Fault protection (V) |
-14 to 14 |
Common-mode range (V) |
-14 to 14 |
Number of nodes |
32 |
Isolated |
No |
Supply current (max) (µA) |
15000 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
SOIC (D)-16-59.4 mm² 9.9 x 6
All trademarks are the property of their respective owners.

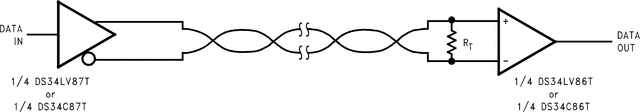

The DS34LV86T is a high speed quad differential CMOS receiver that meets the requirements of both TIA/EIA-422-B and ITU-T V.11. The CMOS DS34LV86T features typical low static ICC of 9 mA which makes it ideal for battery powered and power conscious applications. The Tri-State enables, EN, allow the device to be disabled when not in use to minimize power consumption. The dual enable scheme allows for flexibility in turning receivers on and off.
The receiver output (RO) is ensured to be High when the inputs are left open. The receiver can detect signals as low as ±200 mV over the common mode range of ±10V. The receiver outputs (RO) are compatible with TTL and LVCMOS levels.
