Texas Instruments DS08MB200 Product Info

Parameters

Function	Mux buffer
Protocols	BLVDS, CML, LVDS, LVPECL
Number of transmitters	2, 4
Number of receivers	2, 4
Supply voltage (V)	3.3
Signaling rate (Mbps)	800
Input signal	BLVDS, CML, LVDS, LVPECL
Output signal	LVDS
Rating	Catalog
Operating temperature range (°C)	-40 to 85

Package

WQFN (RHS)-48-49 mm² 7 x 7

Features

Up to 800 Mbps Data Rate per Channel
LVDS/BLVDS/CML/LVPECL Compatible Inputs, LVDS Compatible Outputs

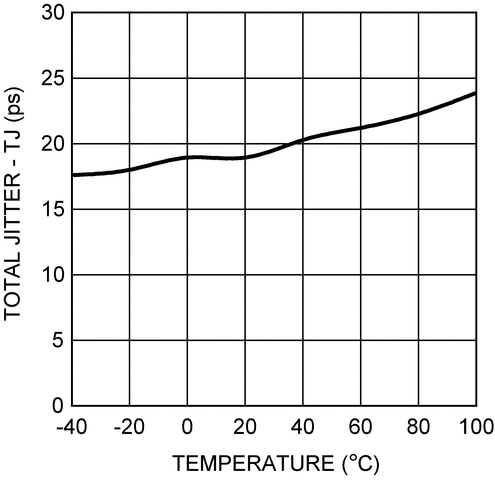

Low Output Skew and Jitter
On-Chip 100Ω Input Termination
15 kV ESD Protection on LVDS Inputs/Outputs
Hot Plug Protection
Single 3.3V Supply
Industrial –40 to +85°C Temperature Range
48-pin WQFN Package

All trademarks are the property of their respective owners.

Up to 800 Mbps Data Rate per Channel
LVDS/BLVDS/CML/LVPECL Compatible Inputs, LVDS Compatible Outputs
Low Output Skew and Jitter
On-Chip 100Ω Input Termination
15 kV ESD Protection on LVDS Inputs/Outputs
Hot Plug Protection
Single 3.3V Supply
Industrial –40 to +85°C Temperature Range
48-pin WQFN Package

All trademarks are the property of their respective owners.

Description

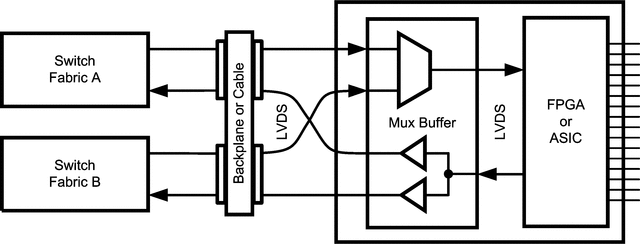

The DS08MB200 is a dual-port 1 to 2 repeater/buffer and 2 to 1 multiplexer. High-speed data paths and flow-through pinout minimize internal device jitter and simplify board layout. The differential inputs and outputs interface to LVDS or Bus LVDS signals such as those on TIs 10-, 16-, and 18- bit Bus LVDS SerDes, or to CML or LVPECL signals.

The 3.3V supply, CMOS process, and robust I/O ensure high performance at low power over the entire industrial 40 to +85°C temperature range.

The DS08MB200 is a dual-port 1 to 2 repeater/buffer and 2 to 1 multiplexer. High-speed data paths and flow-through pinout minimize internal device jitter and simplify board layout. The differential inputs and outputs interface to LVDS or Bus LVDS signals such as those on TIs 10-, 16-, and 18- bit Bus LVDS SerDes, or to CML or LVPECL signals.

The 3.3V supply, CMOS process, and robust I/O ensure high performance at low power over the entire industrial 40 to +85°C temperature range.
