ACTIVE
Vs ABS (max) (V) |
35 |
Vs (min) (V) |
8 |
Peak output current (A) |
3.5 |
Control mode |
STEP/DIR |
Control interface |
Hardware (GPIO) |
Number of full bridges |
2 |
Full-scale current (A) |
2.5 |
RDS(ON) (HS + LS) (mΩ) |
370 |
Sleep current (µA) |
3 |
Microstepping levels |
8 |
Decay mode |
Mixed |
Features |
Current Regulation |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
HTSSOP (PWP)-28-62.08 mm² 9.7 x 6.4

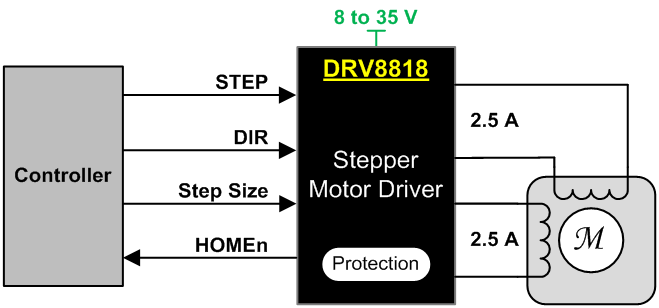

The DRV8818 provides an integrated stepper motor driver for printers, scanners, and other automated equipment applications such as textile machines. The device has two H-bridge drivers, as well as microstepping indexer logic to control a stepper motor.

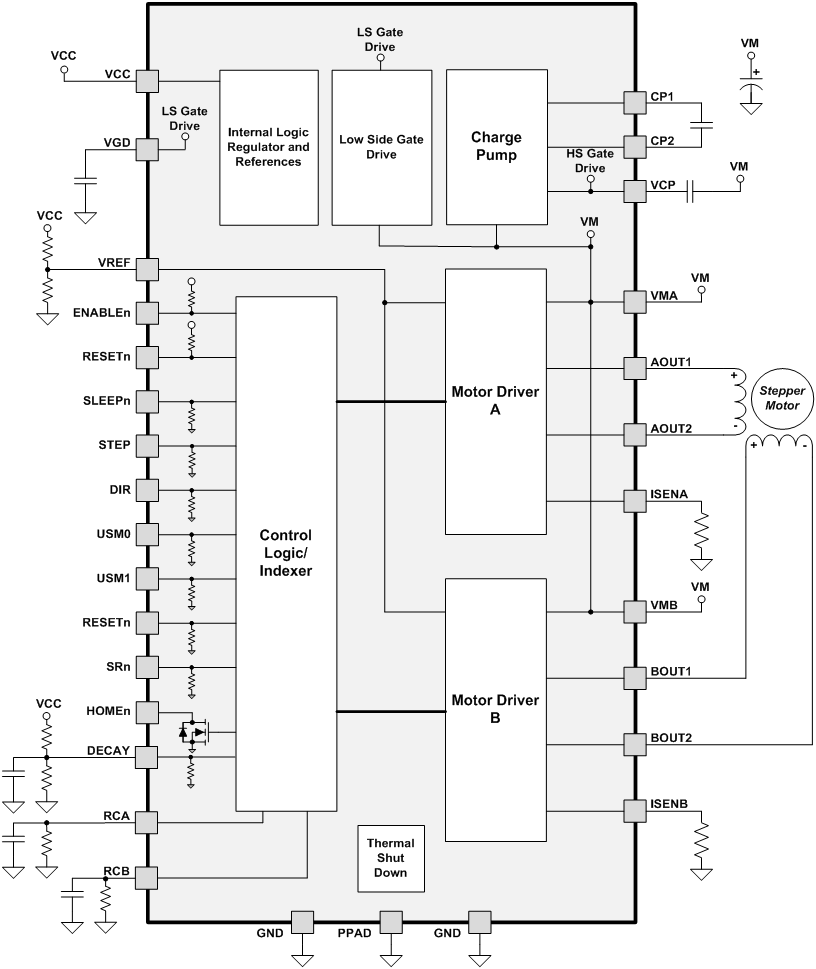

The output driver block for each consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings.
A simple STEP/DIRECTION interface allows easy interfacing to controller circuits. The mode pins allow for configuration of the motor in full-step, half-step, quarter-step, or eighth-step modes. Decay mode and PWM off time are programmable.
Internal shutdown functions are provided for overcurrent protection, short-circuit protection, undervoltage lockout and overtemperature.

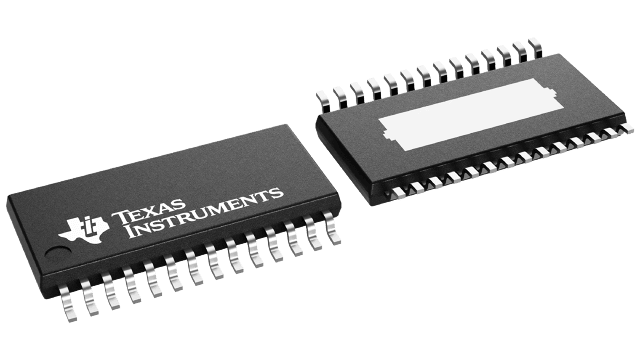

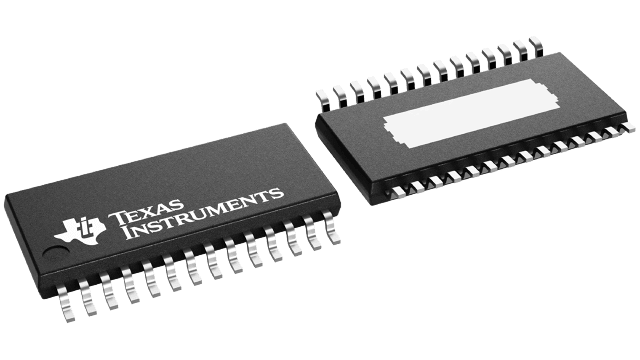

The DRV8818 is packaged in a 28-pin HTSSOP package with PowerPAD™ integrated circuit package.
