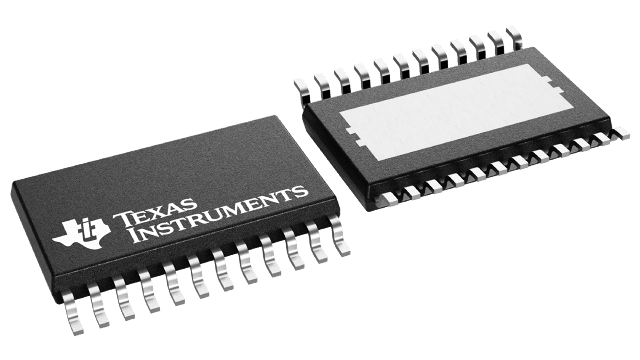

Texas Instruments DRV81620-Q1 Product Info

Parameters

Control interface	SPI
Control mode	PWM
Features	Limp home, Open-Load Detection, Paralleling of outputs, Reverse Battery Protection
Iout/ch (max) (A)	0.33
Number of channels	8
RDS(on) (Ω)	1
Sleep current (mA)	0.005
Vs (min) (V)	3
Vs ABS (max) (V)	40
Peak output current (A)	1.9
Operating temperature range (°C)	-40 to 125
Rating	Automotive

Package

HTSSOP (PWP)-24-49.92 mm² 7.8 x 6.4

Features

AEC-Q100 qualified for automotive applications
- Temperature grade 1: –40°C to +125°C, TA
Functional Safety-Capable
- Documentation to aid functional safety design
3V to 40V Analog supply voltage
- Cranking capability down to 3V
- Supports LV124 automotive standard
3V to 5.5V Digital supply voltage
- Compatible with 3.3V and 5V microcontrollers
42V minimum drain to source clamping voltage
-18V maximum source to ground clamping voltage
RDS(ON): 700mΩ typical at 12V, 25 °C
Current: 330mA per output at 85 °C, with all channels ON
2 parallel inputs with mapping functionality
Fail-safe activation in Limp Home mode
- Using nSLEEP and IN pins
Two independent internal PWM generators
Bulb Inrush Mode (BIM) to drive lamps
- For 2W/5W lamps and other capacitive loads
Low-current sleep mode, < 3µA for TJ ≤ 85 °C
16-bit SPI for control and diagnosis
- Daisy Chain capability
- Compatible with 8-bit SPI devices
Supports various protection features
- Reverse battery protection
- Short circuit to ground and battery protection
- Stable behavior at under voltage conditions
- Over Current latch OFF
- Overtemperature warning
- Thermal shutdown latch OFF
- Overvoltage protection
- Loss of battery and loss of ground protection
- Electrostatic discharge (ESD) protection
Supports several diagnostic features
- Diagnostic information via SPI register
- Over Load detection at ON state
- Open Load detection in ON and OFF state
- Input and output status monitor

AEC-Q100 qualified for automotive applications
- Temperature grade 1: –40°C to +125°C, TA
Functional Safety-Capable
- Documentation to aid functional safety design
3V to 40V Analog supply voltage
- Cranking capability down to 3V
- Supports LV124 automotive standard
3V to 5.5V Digital supply voltage
- Compatible with 3.3V and 5V microcontrollers
42V minimum drain to source clamping voltage
-18V maximum source to ground clamping voltage
RDS(ON): 700mΩ typical at 12V, 25 °C
Current: 330mA per output at 85 °C, with all channels ON
2 parallel inputs with mapping functionality
Fail-safe activation in Limp Home mode
- Using nSLEEP and IN pins
Two independent internal PWM generators
Bulb Inrush Mode (BIM) to drive lamps
- For 2W/5W lamps and other capacitive loads
Low-current sleep mode, < 3µA for TJ ≤ 85 °C
16-bit SPI for control and diagnosis
- Daisy Chain capability
- Compatible with 8-bit SPI devices
Supports various protection features
- Reverse battery protection
- Short circuit to ground and battery protection
- Stable behavior at under voltage conditions
- Over Current latch OFF
- Overtemperature warning
- Thermal shutdown latch OFF
- Overvoltage protection
- Loss of battery and loss of ground protection
- Electrostatic discharge (ESD) protection
Supports several diagnostic features
- Diagnostic information via SPI register
- Over Load detection at ON state
- Open Load detection in ON and OFF state
- Input and output status monitor

Description

The DRV81620-Q1 is an 8-channel low and high-side driver with protection and diagnostics. The device is designed to control relays, LEDs, lamps and motors.

A serial peripheral interface (SPI) with daisy chain is utilized for control and diagnosis of the loads and the device. Two input pins with mapping functionality allow direct control of the outputs. The device supports Limp Home for fail-safe activation. Integrated PWM generators enable driving LEDs, and bulb inrush mode enables driving loads with large capacitance. Clamp circuits on each output dissipates the energy during turning OFF inductive loads.

The device supports various protection features such as undervoltage, overvoltage, short circuit and open load detection. A high level of integration with embedded protection and diagnostic features make the DRV81620-Q1 an excellent choice for automotive body and powertrain applications.
