0
ACTIVE
Control interface |
SPI |
Control mode |
PWM |
Features |
Limp home, Open-Load Detection, Paralleling of outputs, Reverse Battery Protection |
Iout/ch (max) (A) |
0.4 |
Number of channels |
4 |
RDS(on) (Ω) |
1 |
Sleep current (mA) |
0.005 |
Vs (min) (V) |
3 |
Vs ABS (max) (V) |
40 |
Peak output current (A) |
1.9 |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Automotive |

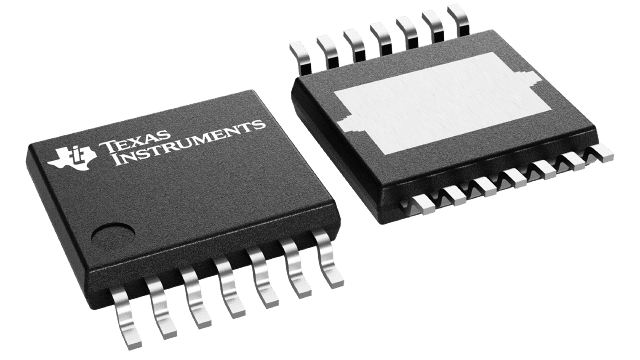

HTSSOP (PWP)-14-32 mm² 5 x 6.4
AEC-Q100 qualified for automotive applications
Temperature grade 1: –40°C to +125°C, TA
RDS(ON): 700mΩ typical at 12V, 25 °C
Current: 470mA per output at 85 °C, with all channels ON
2 parallel inputs with mapping functionality
Fail-safe activation in Limp Home mode
Using nSLEEP and IN pins
Low-current sleep mode
< 2.7µA for TJ ≤ 85 °C using nSLEEP pin
16-bit SPI interface for control and diagnosis
Daisy Chain capability
Compatible with 8-bit SPI devices
Supports various protection features -
Integrated Reverse battery protection
Short circuit to ground and battery protection
Stable behavior at under voltage conditions
Over Current latch OFF
Overtemperature warning
Thermal shutdown latch OFF
Overvoltage protection
Loss of battery and loss of ground protection
Electrostatic discharge (ESD) protection
Supports several diagnostic features -
Diagnostic information via SPI register
Over Load detection in ON state
Open Load detection in OFF state
Input and Output Status Monitor
The DRV81004-Q1 is a four-channel low-side driver with integrated protection and diagnostic features. The device is specially designed to control relays in automotive and industrial applications.
A serial peripheral interface (SPI) with daisy chain capability is used for control and diagnosis of the loads and the device. Two input pins with mapping functionality are available for direct PWM control of the outputs. The device supports Limp Home mode for fail-safe activation.
Each low-side switch of the DRV81004-Q1 has 700mΩ ON resistance. The device can support 470mA current per output when all four channels are ON simultaneously. Integrated clamp circuits on each output dissipates the stored energy when turning OFF inductive loads.
The DRV81004-Q1 supports various protection features such as undervoltage, overvoltage, short circuit, and open load detection. A high level of integration with embedded protection and diagnostic features makes the DRV81004-Q1 an excellent choice for automotive body and powertrain applications, as well as industrial relay control applications.
