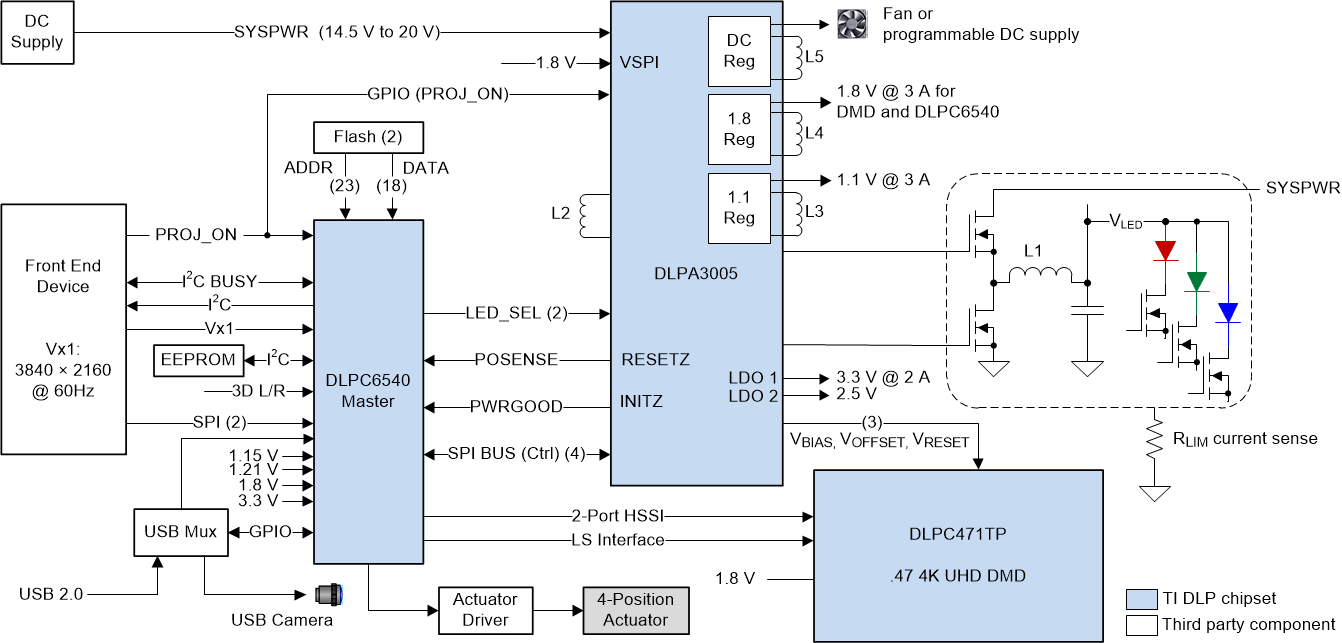

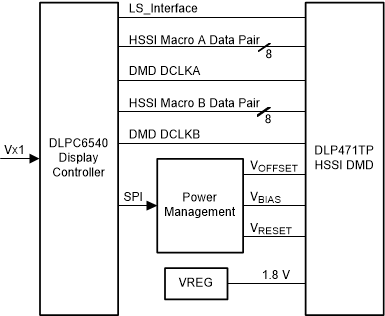

- DLPC6540 controller using the DLP471TP digital micromirror device (DMD) supports
- Up to 4K UHD at 60 Hz
- Up to 1080p at 240 Hz (2D) and 120 Hz (3D)
- Provides single V-by-One HS video input port with one, two, four, or eight lanes
- Up to 600-MHz pixel clock support
- Up to 3.0-Gbps input transmission rate
- Input formats supported
- RGB, YCbCr, and ICtCp
- 4:4:4, 4:2:2, 4:2:0
- Internal Arm CortexR4F processor with FPU
- 88 configurable GPIOs
- Programmable PWM generator
- Programmable capture and delay timers
- USB 2.0 high-speed OTG controller
- SPI primary/secondary controllers
- I2C primary/secondary controllers
- UART and interrupt controllers
- Warping engine
- Improved 1D, 2D, and 3D keystone correction
- Optical distortion correction (radial and lateral color distortion; for example,for short throw)
- Warping (multipoint manual warp and full warp map access 62× 32 points)
- Blending (manual blending and full blending map access 63× 32 points)
- Additional image processing
- DynamicBlack
- TI DLP BrilliantColor™ Technology
- HDR10 (PQ and HLG) support
- Frame rate conversion
- Color coordinate adjustment
- White color temperature adjustment
- Programmable degamma
- Spatial-temporal multiplexing
- Integrated support for 3-D display
- Splash screen display and capture
- Integrated 2G-bit frame memory eliminates need for external high-speed memory
- External memory support
- Parallel flash for µP and PWM sequences
- Secondary flash for splash capture, warping
- System control
- DMD power and reset driver control
- DMD horizontal and vertical image flip
- JTAG boundary scan test support
- DLPC6540 controller using the DLP471TP digital micromirror device (DMD) supports
- Up to 4K UHD at 60 Hz
- Up to 1080p at 240 Hz (2D) and 120 Hz (3D)
- Provides single V-by-One HS video input port with one, two, four, or eight lanes
- Up to 600-MHz pixel clock support
- Up to 3.0-Gbps input transmission rate
- Input formats supported
- RGB, YCbCr, and ICtCp
- 4:4:4, 4:2:2, 4:2:0
- Internal Arm CortexR4F processor with FPU
- 88 configurable GPIOs
- Programmable PWM generator
- Programmable capture and delay timers
- USB 2.0 high-speed OTG controller
- SPI primary/secondary controllers
- I2C primary/secondary controllers
- UART and interrupt controllers
- Warping engine
- Improved 1D, 2D, and 3D keystone correction
- Optical distortion correction (radial and lateral color distortion; for example,for short throw)
- Warping (multipoint manual warp and full warp map access 62× 32 points)
- Blending (manual blending and full blending map access 63× 32 points)
- Additional image processing
- DynamicBlack
- TI DLP BrilliantColor™ Technology
- HDR10 (PQ and HLG) support
- Frame rate conversion
- Color coordinate adjustment
- White color temperature adjustment
- Programmable degamma
- Spatial-temporal multiplexing
- Integrated support for 3-D display
- Splash screen display and capture
- Integrated 2G-bit frame memory eliminates need for external high-speed memory
- External memory support
- Parallel flash for µP and PWM sequences
- Secondary flash for splash capture, warping
- System control
- DMD power and reset driver control
- DMD horizontal and vertical image flip
- JTAG boundary scan test support
