Texas Instruments DLP670S Product Info

Parameters

Illumination wavelength (min) (nm)	420
Illumination wavelength (max) (nm)	700
Display resolution (max)	WQXGA (2716 x 1600)
Pattern rate, binary (max) (Hz)	9523
Pattern rate, 8-bit (max) (Hz)	1190
Array diagonal (in)	0.67
Micromirror array size	2716 x 1600
Micromirror pitch (mm)	0.0054
Micromirror array orientation	Orthogonal
Rating	Catalog
Operating temperature range (°C)	0 to 70

Package

DLP-S610 (FYR)-350-1127 mm² 35 x 32.2

Features

High resolution 2716 × 1600 array
- >4.3 million micromirrors
- 0.67-inch micromirror array diagonal
- 5.4-micron micromirror pitch
- ±17.5° micromirror tilt angle (relative to flat surface)
- Designed for bottom illumination
- Integrated micromirror driver circuitry
Designed for use with broadband visible light (420 nm–700 nm)
- Window transmission 97% (single pass, through two window surfaces)
- Micromirror reflectivity 88%
- Array diffraction efficiency 84% (@f/2.4)
- Array fill factor 93%
Four 16-bit, low voltage differential signaling (LVDS), double data rate (DDR) input-data buses

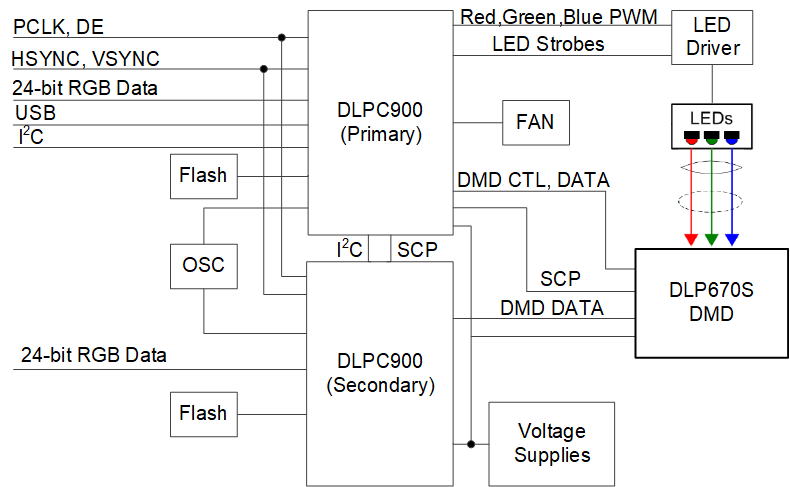

Driven by dual DLPC900 digital controllers
- Up to 9523-Hz 1-bit patterns/second
- Equivalent to 41.3 gigabits/second pixel data rate in a prestored pattern mode
- Up to 1190-Hz, 8-bit gray pattern rate (prestored patterns with illumination modulation)
- Up to 247-Hz, 8-bit pattern rate (external video pattern input)

High resolution 2716 × 1600 array
- >4.3 million micromirrors
- 0.67-inch micromirror array diagonal
- 5.4-micron micromirror pitch
- ±17.5° micromirror tilt angle (relative to flat surface)
- Designed for bottom illumination
- Integrated micromirror driver circuitry
Designed for use with broadband visible light (420 nm–700 nm)
- Window transmission 97% (single pass, through two window surfaces)
- Micromirror reflectivity 88%
- Array diffraction efficiency 84% (@f/2.4)
- Array fill factor 93%
Four 16-bit, low voltage differential signaling (LVDS), double data rate (DDR) input-data buses
Driven by dual DLPC900 digital controllers
- Up to 9523-Hz 1-bit patterns/second
- Equivalent to 41.3 gigabits/second pixel data rate in a prestored pattern mode
- Up to 1190-Hz, 8-bit gray pattern rate (prestored patterns with illumination modulation)
- Up to 247-Hz, 8-bit pattern rate (external video pattern input)

Description

Featuring over 4.3 million micromirrors, the DLP670S digital micromirror device (DMD) is a spatial light modulator (SLM) that modulates the amplitude, direction, and phase of incoming light. This DMD coupled with its four 2xLVDS input data buses enables the display of high-resolution patterns at very fast pattern rates. The high resolution and fast pattern rates offered by the DLP670S make it well-suited to support a wide variety of industrial, medical, and advanced imaging applications. Reliable function and operation of the DLP670S is enabled in conjunction with dual DLPC900 digital controllers. This dedicated chipset provides flexible and easy-to-program patterns at the high pattern rates necessary to meet the requirements of a variety of end-equipment solutions.

The high resolution provides a direct benefit to the scanning of larger objects in 3D machine vision applications.

Get started with TI DLP advanced light-control technology page to learn how to get started with the DLP670S. The DLP advanced light control resources on TI.com accelerate time to market, which include evaluation modules, reference designs, optical modules manufacturers, and DLP design network partners.
