Texas Instruments DAC63204-Q1 Product Info

Parameters

Resolution (Bits)	12
Number of DAC channels	4
Interface type	I2C, SPI
Output type	Buffered Current, Buffered Voltage
Output voltage range (V)	0 to 5.5
INL (max) (±LSB)	4
Settling time (µs)	20
Reference type	Ext, Int
Architecture	String
Rating	Automotive
Features	Current source/sink DAC, EEPROM, Smart DAC
Sample/update rate (Msps)	0.025
Power consumption (typ) (mW)	0.4
Operating temperature range (°C)	-40 to 125
Product type	General-purpose DAC, Smart DAC

Package

WQFN (RTE)-16-9 mm² 3 x 3

Features

• AEC-Q100 qualified for automotive applications:
- Temperature grade 1: –40°C to +125°C, T A
Programmable voltage or current outputs with flexible configuration:
- Voltage outputs:
  - 1 LSB DNL
  - Gains of 1 ×, 1.5 ×, 2 ×, 3 ×, and 4 ×
- Current outputs:
  - 1 LSB INL and DNL (8-bit)
  - ±25-µA, ±50-µA, ±125-µA, ±250-µA output-range options
Programmable comparator mode for all channels
High-impedance output when VDD is off
High-impedance and resistive pulldown power-down modes
50-MHz SPI-compatible interface
Automatically detects I 2C, SPI, or PMBus™ interface
- 1.62-V V IH with V DD = 5.5 V
General-purpose input/output (GPIO) configurable as multiple functions
Predefined waveform generation: sine wave, triangular, sawtooth
User-programmable nonvolatile memory (NVM)
Internal, external, or power-supply as reference
Wide operating range:
- Power supply: 1.8 V to 5.5 V
- Temperature range: –40˚C to +125˚C
Tiny package: 16-pin WQFN (3 mm × 3 mm)

• AEC-Q100 qualified for automotive applications:
- Temperature grade 1: –40°C to +125°C, T A
Programmable voltage or current outputs with flexible configuration:
- Voltage outputs:
  - 1 LSB DNL
  - Gains of 1 ×, 1.5 ×, 2 ×, 3 ×, and 4 ×
- Current outputs:
  - 1 LSB INL and DNL (8-bit)
  - ±25-µA, ±50-µA, ±125-µA, ±250-µA output-range options
Programmable comparator mode for all channels
High-impedance output when VDD is off
High-impedance and resistive pulldown power-down modes
50-MHz SPI-compatible interface
Automatically detects I 2C, SPI, or PMBus™ interface
- 1.62-V V IH with V DD = 5.5 V
General-purpose input/output (GPIO) configurable as multiple functions
Predefined waveform generation: sine wave, triangular, sawtooth
User-programmable nonvolatile memory (NVM)
Internal, external, or power-supply as reference
Wide operating range:
- Power supply: 1.8 V to 5.5 V
- Temperature range: –40˚C to +125˚C
Tiny package: 16-pin WQFN (3 mm × 3 mm)

Description

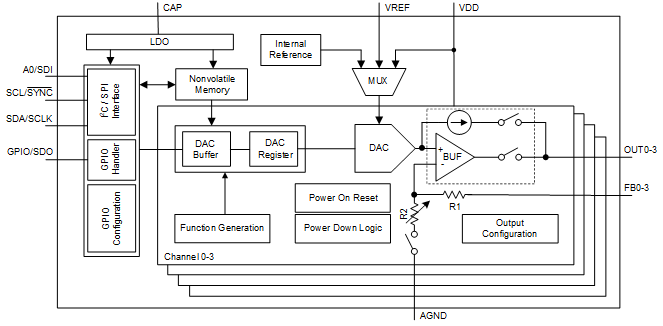

The 12-bit DAC63204‑Q1 and 10-bit DAC53204‑Q1 ( DACx3204‑Q1) are a pin-compatible family of automotive, quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). The DACx3204‑Q1 devices support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I 2C, PMBus, and SPI and contain an internal reference.

The feature set combined with the tiny package and low power make these DACx3204‑Q1 smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation.

The 12-bit DAC63204‑Q1 and 10-bit DAC53204‑Q1 ( DACx3204‑Q1) are a pin-compatible family of automotive, quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). The DACx3204‑Q1 devices support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I 2C, PMBus, and SPI and contain an internal reference.

The feature set combined with the tiny package and low power make these DACx3204‑Q1 smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation.
