Texas Instruments DAC63004W Product Info

Parameters

Resolution (Bits)	12
Number of DAC channels	4
Interface type	I2C, SPI
Output type	Buffered Current, Buffered Voltage
Output voltage range (V)	0 to 5.5
INL (max) (±LSB)	4
Settling time (µs)	20
Reference type	Ext, Int
Architecture	String
Rating	Catalog
Features	Current source/sink DAC, EEPROM, Low Power, Smart DAC
Sample/update rate (Msps)	0.025
Power consumption (typ) (mW)	0.13
Operating temperature range (°C)	-40 to 125
Product type	General-purpose DAC, Smart DAC

Package

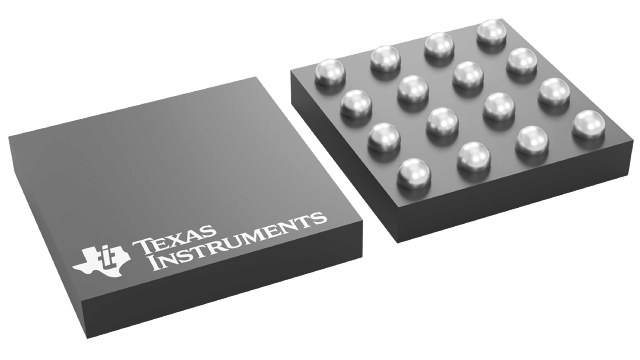

DSBGA (YBH)-16-2.56 mm² 1.6 x 1.6

Features

Programmable voltage or current outputs with flexible configuration:
- Voltage outputs:
  - 1LSB DNL
  - Gains of 1 ×, 1.5 ×, 2 ×, 3 ×, and 4 ×
- Current outputs:
  - 1 LSB INL and DNL (8-bit)
  - Unipolar and bipolar output range options from 25µA to 250µA
35µA/channel IDD in voltage-output mode
Programmable comparator mode for all channels
High-impedance output when VDD is off
High-impedance and resistive pulldown power-down modes
50MHz SPI-compatible interface
Automatically detected I2C, SPI, or PMBus™ interface
- 1.62V VIH with VDD = 5.5V
General-purpose input/output (GPIO) configurable as multiple functions
Predefined waveform generation: sine wave, triangular, sawtooth
User-programmable nonvolatile memory (NVM)
Internal, external, or power-supply as reference
Wide operating range:
- Power supply: 1.8V to 5.5V
- Temperature range: –40˚C to +125˚C
Tiny package: 16-pin DSBGA (1.76mm × 1.76mm)

Programmable voltage or current outputs with flexible configuration:
- Voltage outputs:
  - 1LSB DNL
  - Gains of 1 ×, 1.5 ×, 2 ×, 3 ×, and 4 ×
- Current outputs:
  - 1 LSB INL and DNL (8-bit)
  - Unipolar and bipolar output range options from 25µA to 250µA
35µA/channel IDD in voltage-output mode
Programmable comparator mode for all channels
High-impedance output when VDD is off
High-impedance and resistive pulldown power-down modes
50MHz SPI-compatible interface
Automatically detected I2C, SPI, or PMBus™ interface
- 1.62V VIH with VDD = 5.5V
General-purpose input/output (GPIO) configurable as multiple functions
Predefined waveform generation: sine wave, triangular, sawtooth
User-programmable nonvolatile memory (NVM)
Internal, external, or power-supply as reference
Wide operating range:
- Power supply: 1.8V to 5.5V
- Temperature range: –40˚C to +125˚C
Tiny package: 16-pin DSBGA (1.76mm × 1.76mm)

Description

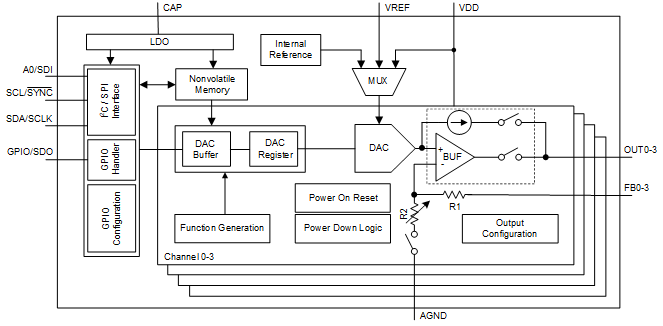

The 12-bit DAC63004W and 10-bit DAC53004W (DACx3004W) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These DACx3004W support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, SPI, and PMBus interfaces, and contain an internal reference.

The feature set combined with the tiny package and low power make these smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation.

The 12-bit DAC63004W and 10-bit DAC53004W (DACx3004W) are a pin-compatible family of quad-channel, buffered, voltage-output and current-output smart digital-to-analog converters (DACs). These DACx3004W support Hi-Z power-down mode and Hi-Z output during power-off condition. The DAC outputs provide a force-sense option for use as a programmable comparator and current sink. The multifunction GPIO, function generation, and NVM enable these smart DACs for processor-less applications and design reuse. These devices automatically detect I2C, SPI, and PMBus interfaces, and contain an internal reference.

The feature set combined with the tiny package and low power make these smart DACs an excellent choice for applications such as voltage margining and scaling, dc set-point for biasing and calibration, and waveform generation.
