ACTIVE
Technology family |
AHCT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
8 |
IOL (max) (mA) |
8 |
Supply current (max) (µA) |
20 |
IOH (max) (mA) |
-8 |
Input type |
TTL-Compatible CMOS |
Output type |
Push-Pull |
Features |
Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |

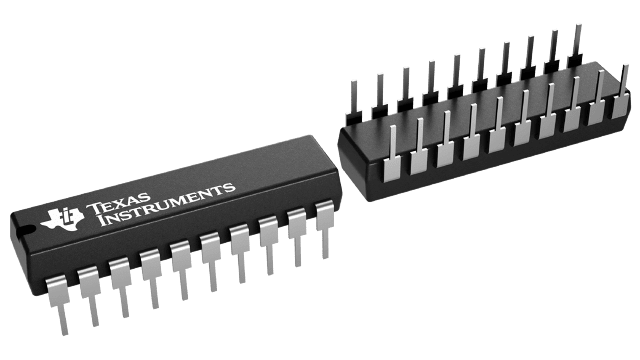

PDIP (N)-20-228.702 mm² 24.33 x 9.4
The ’AHCT541 octal buffers/drivers are ideal for driving bus lines or buffer memory address registers. These devices feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout.
