ACTIVE
Configuration |
Serial-in, Parallel-out |
Bits (#) |
8 |
Technology family |
HCS |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Input type |
Schmitt-Trigger |
Output type |
Open-drain |
Clock frequency (MHz) |
75 |
IOL (max) (mA) |
7.8 |
IOH (max) (mA) |
-7.8 |
Supply current (max) (µA) |
2 |
Features |
Balanced outputs, High speed (tpd 10-50ns), Output register, Positive input clamp diode |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Automotive |
SOIC (D)-16-59.4 mm² 9.9 x 6

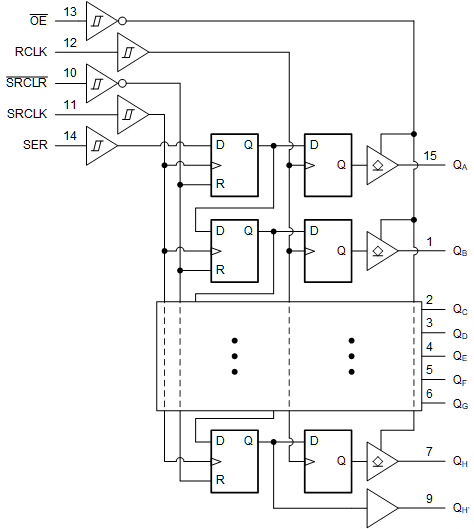

The SN74HCS596-Q1 device contains an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. All inputs include Schmitt-triggers, eliminating any erroneous data outputs due to slow-edged or noisy input signals. The storage register has parallel open-drain outputs. Separate clocks are provided for both the shift and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and a serial output (QH) for cascading. When the output-enable (OE) input is high, the outputs are in a high-impedance state. Internal register data is not impacted by the operation of the OE input.
