ACTIVE
Resolution (Bits) |
8 |
Number of DAC channels |
1 |
Interface type |
Parallel |
Output type |
Unbuffered Current |
Output voltage range (V) |
-18 to 18 |
INL (max) (±LSB) |
1 |
Settling time (µs) |
0.1 |
Reference type |
Ext |
Architecture |
Multiplying DAC |
Rating |
Catalog |
Features |
Current Output |
Sample/update rate (Msps) |
6.6 |
Power consumption (typ) (mW) |
33 |
Operating temperature range (°C) |
0 to 70 |
Product type |
General-purpose DAC |
SOIC (D)-16-59.4 mm² 9.9 x 6
All trademarks are the property of their respective owners.

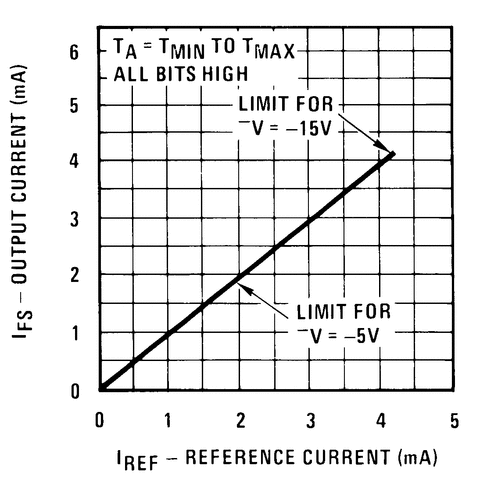

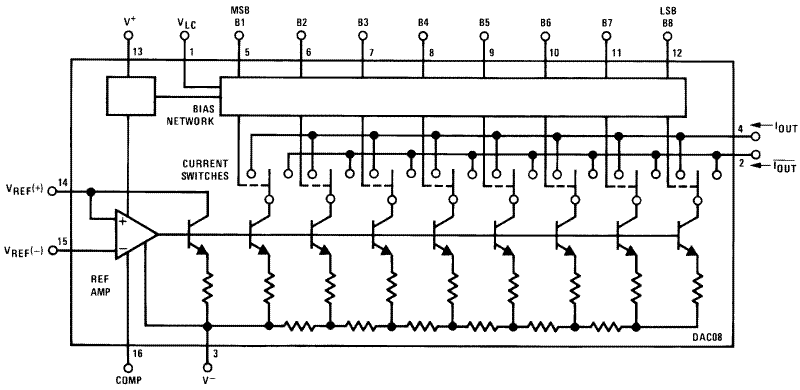

The DAC0800 series are monolithic 8-bit high-speed current-output digital-to-analog converters (DAC) featuring typical settling times of 100 ns. When used as a multiplying DAC, monotonic performance over a 40 to 1 reference current range is possible. The DAC0800 series also features high compliance complementary current outputs to allow differential output voltages of 20 Vp-p with simple resistor loads. The reference-to-full-scale current matching of better than ±1 LSB eliminates the need for full-scale trims in most applications, while the nonlinearities of better than ±0.1% over temperature minimizes system error accumulations.

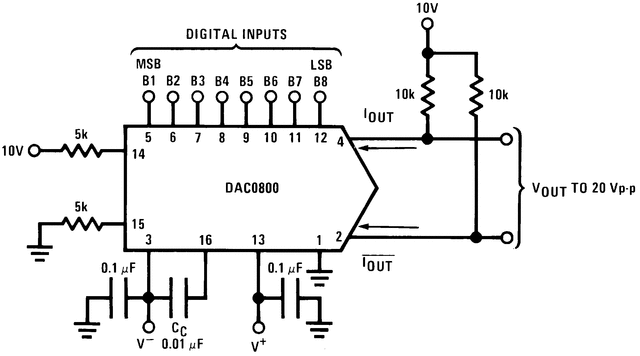

The noise immune inputs will accept a variety of logic levels. The performance and characteristics of the device are essentially unchanged over the ±4.5V to ±18V power supply range and power consumption at only 33 mW with ±5V supplies is independent of logic input levels.
The DAC0800, DAC0802, DAC0800C and DAC0802C are a direct replacement for the DAC-08, DAC-08A, DAC-08C, and DAC-08H, respectively. For single supply operation, refer to AN-1525.
